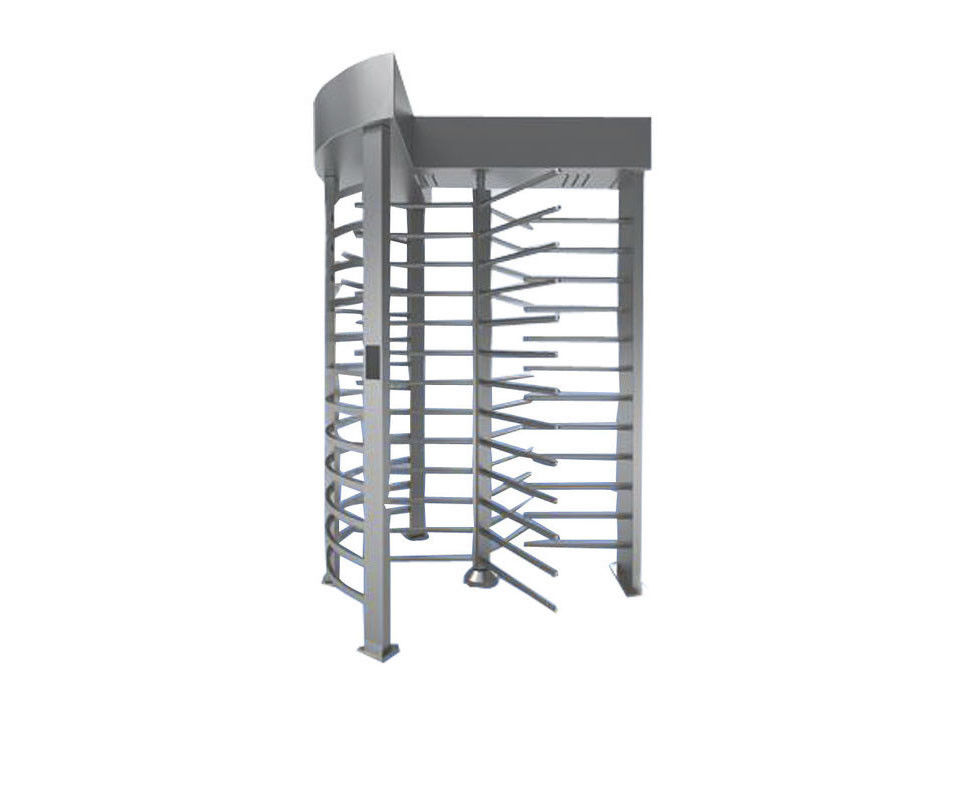

Access Control Security Turnstile

Access Control Security Turnstile


Large Image :  Access Control Security Turnstile Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: DLX-501
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(1-7000)
Packaging Details: Carton box or Wooden box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300Sets/Month
Detailed Product Description
Material: 304Stainless Steel Machine Core: Semi Automatic
Size: L1630*W1450*H2300mm Communication Distance: <1200M
Traffic Speed: 40people/min Work Environment: Indoor And Outdoor
High Light:

full height turnstile gate


full high turnstile


Access Control Security Turnstile

RFID Reader Access Control Turnstile Full Height 304 Stainless Steel Material


Product Classification




1 Power AC220C±20V,50HZ;
2 Machine core  Semi Automatic
3 Operating Temperature -40℃-70℃
4 Relative Humidity ≤95%, No Condensation
5 Passage Width ≤600mm
6 Passing Speed 40persons/min
7 Motor no motor ,Semiautomatic Mechanism, solenoid and electromagnet mechanism, with shock absorber
8 Input Connection +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9 Communication Connection without RS485 Communication
10 Material Stainless steel 304,thickness is no less than 1.5mm
11 Communication Distance <1200M
12 Running life 5--8 Million(Continuous Opening and Closing Operation)
13 Protect level IP54
14 Size 1630*1450*2300mm ,Many size can be choice or custom made as demand
15 Colour Stainless Steel Brushed / Powder Coating(Optional)
16 Operation Place Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





Product introduction
Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.
◇ external dimensions: 1630X1450X2300
◇ brake lever length: 600(mm)
◇ weight: 180KG
◇ brake lever steering: one-way two-way
◇ working environment: indoor and outdoor (preferably with awning)


Features :

1. High Security, anti-crawling, anti-climbing, no need guard for the gate.

2. Free rotation by force when power off. Locked when power on.

3. Arm locked until a valid signal is given.

4. Reset automatically, after authorizer pass through, arm back to zero position and locked.

5. Memory can be set, swipe cards several times for group pass.

6. One way or two way controlled.

7. Pass right will be cancelled if authorizer does not pass within preset time.

8. With standard inputs and outputs, can be integrated with different access control devices.

9. Control by PC.


Applicable place:
◆ high security occasions: prisons, military places, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.



Access Control Security Turnstile 0
