Black Transparent Anti Static Carrier Tape For SMD SMT Packing

Black Transparent Anti Static Carrier Tape For SMD SMT Packing

large.img.alt
small.img.alt small.img.alt

Large Image :  Black Transparent Anti Static Carrier Tape For SMD SMT Packing Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ACE DELIXIN
Certification: ROHS,SGS
Model Number: 8mm-88mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD(0.1-6)/meter
Packaging Details: carton box packing
Delivery Time: 5-8days
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 200000meters per month
Detailed Product Description
Color: Black Or Clear ESD Value: 10E5 Or NO
Size: Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm Material: PS/PC/PET
Cover Tape: Can Provide Reel: Can Provide
High Light:

SGS Anti Static Carrier Tape

,

Black Transparent Carrier Tape Reel

,

Environment Friendly Carrier Tape Reel

Carrier Tapa Cover Black Transparent Anti-static Advantage Carrier Tape For SMD SMT Packing

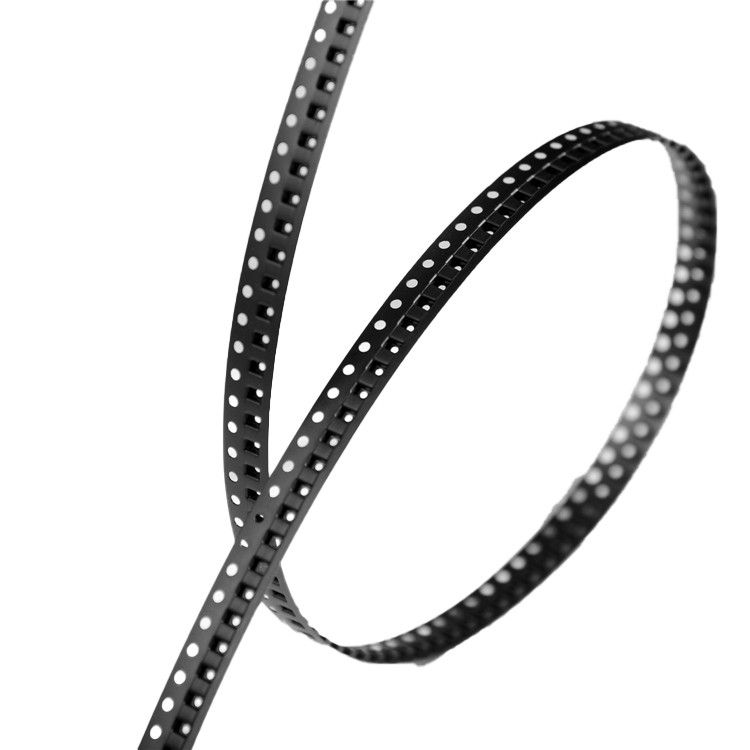

Carrier tape

8-88mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

Cover tape

Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:

Carrier tape (MM) 8 12 16 24 32 44 56 72 88
Cover Tape (MM) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5

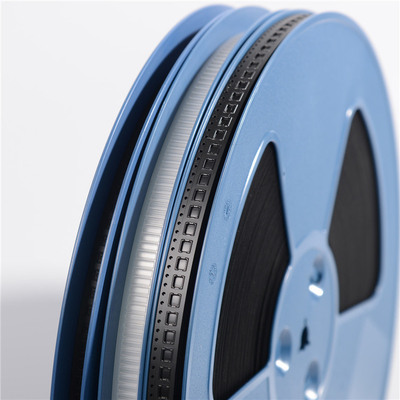

Plastic Reel

Environment-friendly PS anti-static materials,blue /black/white

Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.

Black Transparent Anti Static Carrier Tape For SMD SMT Packing 0Black Transparent Anti Static Carrier Tape For SMD SMT Packing 1
