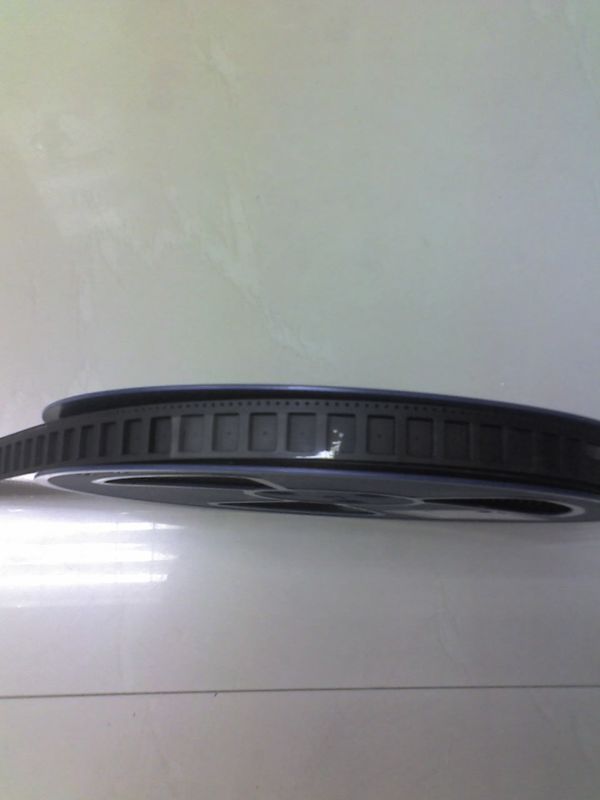

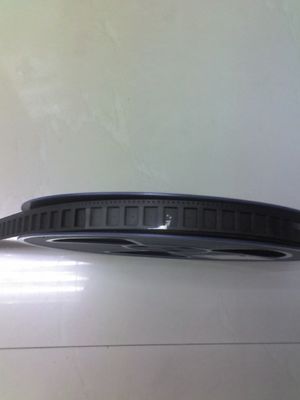

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm
Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm

Large Image :  Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ACE DELIXIN
Certification: ROHS,SGS
Model Number: 8mm-88mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD(0.1-6)/meter
Packaging Details: carton box packing
Delivery Time: 5-8days
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 200000meters per month
Detailed Product Description
Color: Black Or Clear ESD Value: 10E5
Size: 24mm,32mm,44mm Material: PS/PC
Cover Tape: Can Provide Reel: Can Provide
High Light:

tape on reel packaging

,

electronic component carrier tape

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm

Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

SMD Embossed Carrier Tapes and Reels

  • Embossed carrier tapes for IC chips and other devices
  • Take-up Reel made from high impact injection molded materials
  • Reels available in normal, blue antistatic and conductive black
  • Width : 8, 12, 16, 24, 44, 56, 72 and 88 mm



Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 0Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 1

Cover tape

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 2

PG-DLX608 PSA COVER TAPE SPECIFICATION

PG-A608 PSA Cover Tape is excellent tape. It can paste PS,PC,PET Carrier Tape. It is steady property and suit for SMT component package material.

Base material:PET FILM

Adhesive agent: activity adhesive agent.

  • Physical property:
Item Specification data Remark

Visual



Transparent

Brown

Visible Light 109-11

PG-DLX608 V.L.69-70%(Conductive)

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 3
Thickness PG-DLX608 0.056mm±0.01mm ASTM D-374
Surface resistance

One side S.R VALUE 103-5Ω/Square

T=25℃ RH=65%

ASTM D-257
Extensile strength

MD/22.4

TD/25.9

ASTM D-882
Extensibility %

MD/147

TD/120

ASTM D-882
POS Refer to attachment 一 EIA-481
Aging test on POS Refer to attachment二 EIA-481
Length

Standard length: Every roll200+3M:5.4 mm -97.5 mm

500+3M:9.3 mm -97.5 mm

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 4
Width 5.4 mm -97.5 mm Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 5
Guarantee time One year after get tape Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 6



Plastic reel

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm 7

Reel hub size: 2, 4,7 inch

Reel Outer DIM..7 ,13,14,15,20,22,24,26 inch

Reel color: black, blue, white, Nature

Reel width 8-200mm

Reel material: paper, plastic

Reel surface resistance: Conductive style below 10E6 OHM/SQ

Antistatic style 10E6 -10E10E11 OHM/SQ

Common style Above 10E11 OHM/SQ

Reel storage time: 1-2 years

friction times: 1000 times
