|Material:||SS304||Size:||L420 X W330 XH1000MM|
|Reader:||Need||Product Name:||Access Control Tripod Turnstile|
tripod barrier gate,
pedestrian turnstile gate,
ESD Entry Tripod Turnstile System

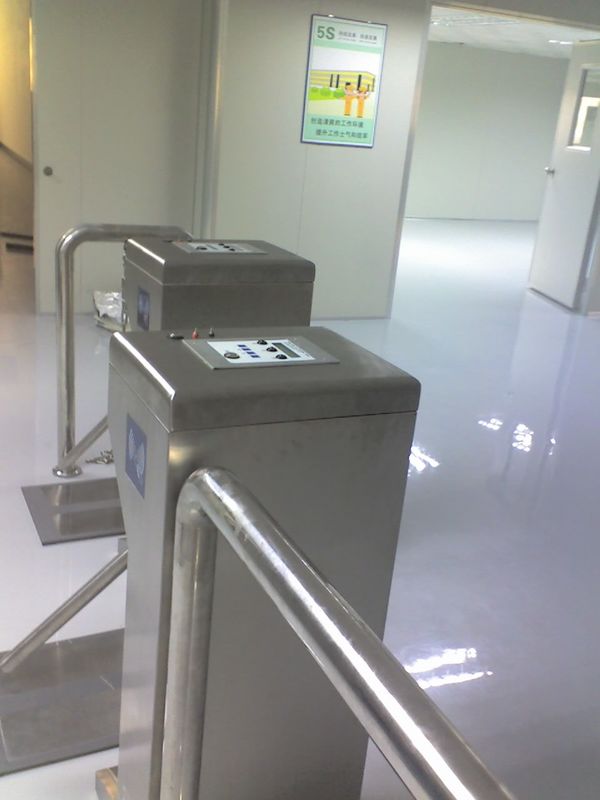

ESD Entry Tripod Turnstile System Waterproof Anti Recoil With Different Reader
ESD Entry Tripod Turnstile System with different reader
ESD entry tripod turnstile system is a computerized managing system, and can be connected by single machine, local and TCP/IP communication message with software and hardware. This system is mainly control passage to pass in and out, who can pass in and who can't pass in, it can store all entry/exist records. It can also be connected by RS232 or RS485 interface with computer. At present it uses free touch technology and changes data by radio frequency signal, with features of high confidence and strict dependability. The entry way is as follows:
When tester shows wrist strap and anti-static shoes(heel grounder) PASS, entry door will be opened automatically, operator can go through.
Turnstile will open automatically when test instrument test VIP card (free card).
1.1 Operator stand on the installed foot plate with anti-static shoes or heel grounder.
Plug wrist strap into tester,operator connect wrist band to arm.
1.3 Bring ID card to card reader, information from the card will be read.
Press test button on tester and wait test results from tripod turnstile's LED(Step 1.2 and 1.3 can be exchanged, the longest time is 5S)
1.4 If test indicates PASS (Tester show wrist strap and heel grounder PASS, LED from tripod turnstile become Green arrow),the entry door will automatically open and test results” Access entry” will be shown on computer automatically ,which are Green color words. However if test indicates Fail, please check wrist strap and anti-static shoes(or heel grounder)according to LED indication from tester ,meanwhile computer will show Red color test results “Invalid card”. This system could let supervisor control operator’s wrist strap and anti-static shoes more efficiently, in order to make purchasing track the working status of wrist strap and anti-static shoes(heel grounder) better.
The system support SQL SERVER & ACCESS software.
2.1. Structure:import 304 stainless steel
2.2. Floodgate weight:70.00KG
2.3. Size:1200x280x1000H mm
2.4. Length of shaft:510mm
2.5. The shaft can bear the max weight:80.00kg
2.6. Working drive:3.00kg
2.7. Transmission way: motor-driven(Mechanical)
2.8. Turn direction: Single way
2.9. Switch time :≤1 seconds
2.10. Average trouble-free running: ≥500000 hours
2.11. Speed of pass through:15 times per minute
2.12. Lights indication: Green/pass, Red/prohibit
2.13. Trouble status: go through freely without electricity
2.14. Outer shell protect: seal up &waterproof
2.15. Control&examine place:3
2.16. Package: carton box
