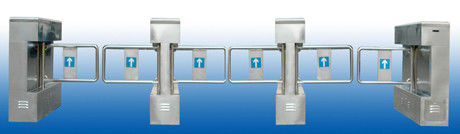

Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System

Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System

Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System
Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System

Large Image :  Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACE DELIXIN
Certification: CE
Model Number: ACE1000.300.1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Firstly use carton box to pack, then use export wood box to pack
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Stainless Steel Interface: TCP/IP
Tester Display: LCD Application: ESD Inspection And Access Control System
Power Comsumption: Static Status: 20W; Dynamic Status: 60W Humidity: 5%~90%
Speed: ≥20 People/min Noise: <50DB
Lane Width: 500-1000mm Usage Life: More Than 600 Million Times
High Light:

tripod barrier gate

,

tripod access system

,

security Pedestrian Barrier Gate

Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System


I. Swing / passage turnstile( Barrier) specification
1) Two directions controlled/one direction controlled
2) LED direction indicator
3) Flow Speed:
4) 50 people/minute in the opening mode
5) 30 people/minute in the closing mode
6) Illegal invasion sound alarm
7) Anti-strike function
8) Keep open/close status if the power supply fails
9) RS485 interface
10) Pulse voltage signal, more than 100ms
11) Passageway: ≤700mm
12) Power: AC220V, 50Hz
13) Operating environment: Temperature :-20℃ to 80℃
RH ≤90%
14) Dimensions: 1, 200 x 280 x 1, 000mm
15) Can connect various access controllers such as IC/ID reader/writer, button controller, barcode controller, code controller, fingerprint controller, or computer.

II. iDS-610 – ESD Wrist Strap and Shoe Tester







Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System 0



  • Able to test/verify from 500kOhm to 1000MOhm
  • Accuracy/Tolerance ±10%
  • Simultaneous testing of Wrist strap, Left Foot and Right Foot
  • Testing Voltage 12V
  • Enclosure: Stainless steel casing
  • Testing Point ~ Vandal Resistance Steel Button
  • Water Isolated/Proof Footplate (Supplied together with the system)
  • Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
  • Other features of ESD tester:
    * 2x20 LCD Panel to facilitate Verification/Calibration
    * Digital Verification/Calibration Method
    * Upgradable for DataLogging and other control use


III. ID or IC reader


1. Specification:

ID CARD

Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS;Cover Foil = PVC
Color:White , black, grey, blue, yellow

Power requirements: 5-16VDC at 100mA, A linear regulator is recommended

Interface: Weigand

Reader range: 5 - 10 cm

Operation temperature: -30 C to +60 C

operationg humidity: 5%-95% relative humidity non-condensing

Audio/Visual Indication: Green & Red and Buzzer signal output

Response Time: Less than 0.2 seconds

cable length: 250mm

Weight: 60g

2. Wiring :

Red: Power 5-16V

Black: Power ground

Green: Wiegand output D0

White: Wiegand output D1

Brown: Green LED control

Blue: Buzzer control

Yellow: Hold



LED/Buzzer function description

LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.

Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released

Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)




IV. Data Logging System D-Stat 700



D-Stat 700 Wrist Strap/Foot wear Datalogging System

Exhibition Smart Pedestrian Barrier Gate For Rfid Door Access Control System 1

Specification

Datalogger is connected to a PC via RS-232 or TCPIP

1>. Tester is able to test left and right footwear

simultaneously.

2>. Tester is ready to test for 5 seconds after swiping card

reader.

3>. Software to plot graph or report as specified.

4>. Software is customized according to users requirement.

5>. System to pull operators database from server.

6>. E-mail notification if operator fail test.

7>. Graph and report can be viewed by authorized workstation.



4. D-Stat 700 Wrist Strap/Footwear

Datalogging System

D-Stat 700 datalogging system is a self-contained and user

friendly system that provides the ultimate means to automate

the test data of the wrist strap and/or footwear.

The basic system consists of :

- Wrist strap and footwear tester

- D-Stat 700 Datalogging

- Ds-Reader

- Ds-Scheduler

- Ds-Reporting

- Ds-Fail Reporting

- Dual Conductor Footplate

- Barcode Reader/Smart Card Reader

- Computer
