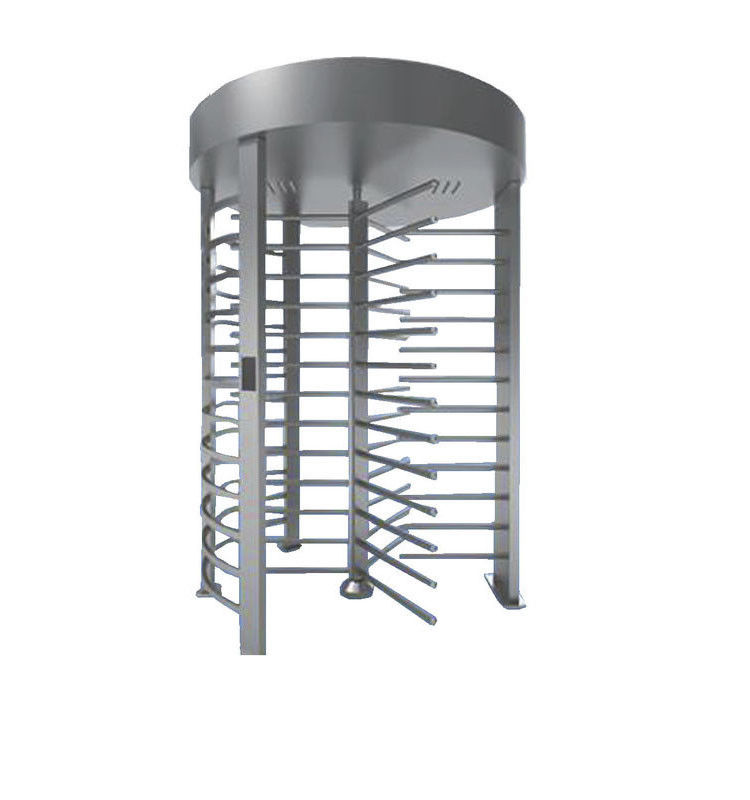

High Security Turnstile Stainless Steel

High Security Turnstile Stainless Steel

large.img.alt
small.img.alt

Large Image :  High Security Turnstile Stainless Steel Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: DLX-502
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(1-7000)
Packaging Details: Carton box or Wooden box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300Sets/Month
Detailed Product Description
Material: 304Stainless Steel Power Supply: 50Hz
Size: L1631*W1450*H2300mm Weight: 201kg
Traffic Speed: 40people/min Work Environment: Indoor And Outdoor
High Light:

full height turnstile gate

,

full high turnstile

,

stainless steel high security turnstile

Rotary Durable Security Turnstile Stainless Steel With Fingerprint / QR Code Scan



Product Classification



Model:DLX-502




1 Power AC220C±20V,50HZ;
2 Machine core  Semi Automatic
3 Operating Temperature -40℃-70℃
4 Relative Humidity ≤95%, No Condensation
5 Passage Width ≤600mm
6 Passing Speed 40persons/min
7 Motor no motor ,Semiautomatic Mechanism, solenoid and electromagnet mechanism, with shock absorber
8 Input Connection +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9 Communication Connection without RS485 Communication
10 Material Stainless steel 304,thickness is no less than 1.5mm
11 Communication Distance <1200M
12 Running life 5--8 Million(Continuous Opening and Closing Operation)
13 Protect level IP54
14 Size 1630*1450*2300mm ,Many size can be choice or custom made as demand
15 Colour Stainless Steel Brushed / Powder Coating(Optional)
16 Operation Place Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control







Product Description :

The full body is made of 304# stainless steel; consist of three bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. It is pedestrian access the upgrading product of tripod turnstile. With standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire alarm triggered.

Anti-passback, with hydraulic damper, low impact sound and high durability:



Product introduction
Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.
◇ external dimensions: 1630X1450X2300
◇ brake lever length: 600(mm)
◇ weight: 200KG
◇ brake lever steering: one-way two-way
◇ working environment: indoor and outdoor (preferably with awning)



Features :

1. High Security, anti-crawling, anti-climbing, no need guard for the gate.

2. Free rotation by force when power off. Locked when power on.

3. Arm locked until a valid signal is given.

4. Reset automatically, after authorizer pass through, arm back to zero position and locked.





Applicable place:
◆ high security occasions: prisons, military places, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.





High Security Turnstile Stainless Steel 0
