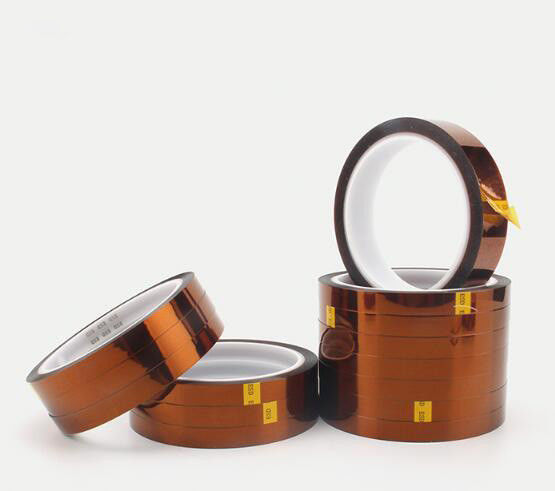

High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive

High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive

High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive
High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive

Large Image :  High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: T3
Payment & Shipping Terms:
Minimum Order Quantity: 50Rolls
Price: USD(1-10)/Roll
Packaging Details: 10Rolls/bag 100Rolls/carton
Delivery Time: Ex-stock
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 100000Rolls
Detailed Product Description
Material: Kapton +silicone Glue Size: Any Width*33m (Length)
Thickness: 0.06mm Color: Brown
Country Of Origin: China Adhesive Side: Single Sided
Core Type: Plastic Core Feature: High Temperature Resistant+Anti-static
ESD Reading: 10E7-10E10
High Light:

anti static products

,

esd static control products

High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive


Product Application

Silicone Adhesive Polyimide Tape Heat Resistant High Temperature Polyimide Tape is based on polyimide film and coated with high performance silicone adhesive for temperature resistance and electrical insulation. It is wiely applied for motor insulation ,gold finger protection for PCB during wave soldering.



Film Thickness
0.025mm
Total Thickness
0.06-0.08mm
Color
Amber
Tensile Strength
20KG/25mm
Adhesionto Steel
5.5N/25mm
Roll core
76mm/38mm
Application
SMT wave soldering,FPC connection,Motor insulation,electroplated
Sample
Free(Customers pay
for shipping cost)
Temperature Resistance
260 ℃
Certification
ISO, SGS



Specification:

1. Used heat resistance imported silicone glue and PI film. Amber or black color option ,inner roll core can be made as 76mm and 38mm.

2. Polyimide base film coating with high temperature Silicone adhesive;

3. High temperature and corrosion resistance;

4. Strong adhesion;

5. Soft and proper and no residue after peeling off.

6. For electronic manufacturing industry

7. Heat resistance, High Voltage insulation, acid and alkali resistant, low voltage electrolytic

8.Jumbo roll is 500mm width*33M Length



Usage: Widely used for all kinds of electronic products, Bar code label, machine part, electronic component, electrical insulation pressure sensitive tape. Polyimide (PI) adhesive tape, Insulation material for tansformer. This item is used for SMD packing and transformer manufacturing.Protect golden finger when PCB board in soldering tin furnace, ,insulation of coil, wave-soldering protection, electrical insulation, high temperature resistance, etc. No residue leaving after peeling off.

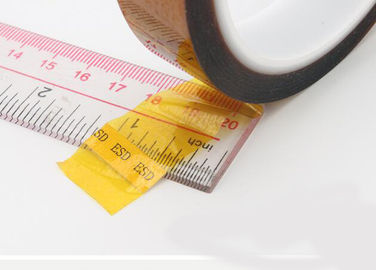

High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive 0High Temperature 260℃ Anti Static Tape Esd Kapton Tape Single Sided Adhesive 1
