Portable ASTM D-257 ESD 90%RH 9V Surface Resistance Tester

Portable ASTM D-257 ESD 90%RH 9V Surface Resistance Tester

large.img.alt
small.img.alt small.img.alt

Large Image :  Portable ASTM D-257 ESD 90%RH 9V Surface Resistance Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: SURPA
Certification: CE
Model Number: 385
Payment & Shipping Terms:
Minimum Order Quantity: 2Sets
Price: USD52/Set
Packaging Details: 1pc/box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets
Detailed Product Description
Display Type: Digital Only Testing Voltage: 9V
Measuring Range: 10^3 ~ 10^12 Accuracy Class: + - 1/2 Decade
Dimensions: L137mm * W76mm * D30mm Relative Humidity: 0% ~ 90% RH
Weight: 120g
High Light:

9V Surface Resistance Tester

,

90%RH Surface Resistance Tester

,

ESD Surface Resistance Testing Machine

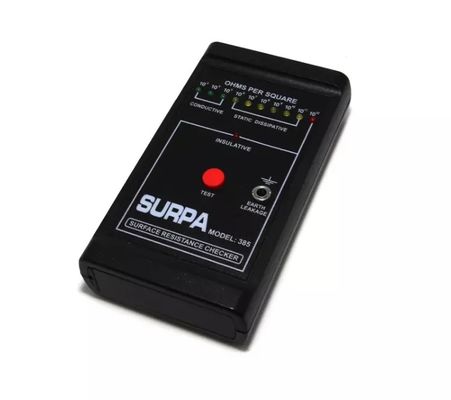

High Quality Portable Testing Machine Surface Resistance Tester  SURPA 385



Product Description



Surface resistance tester is an ultra wide-range,battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface confoming to ASTM D-257 standard by using recommended parallel bar sensing probe. In the circuit industry,products such as packaging materials, ESD shielding bags, work bench surfaces,static dissipative table and floor mats,conveyor belts,etc,have resistance &#118alues which need to confom to stringent specifications. Moreover, these &#118alues are expected to fall with in specified limits. The Surface Resitivity Meter can play a vital role in monitoring and checking the resistivity characterstic of the above items.

It also has unique additional feature of surface-to-ground measurement capability wherein the resistivity differential between any surface and any chosen ground can be determined.

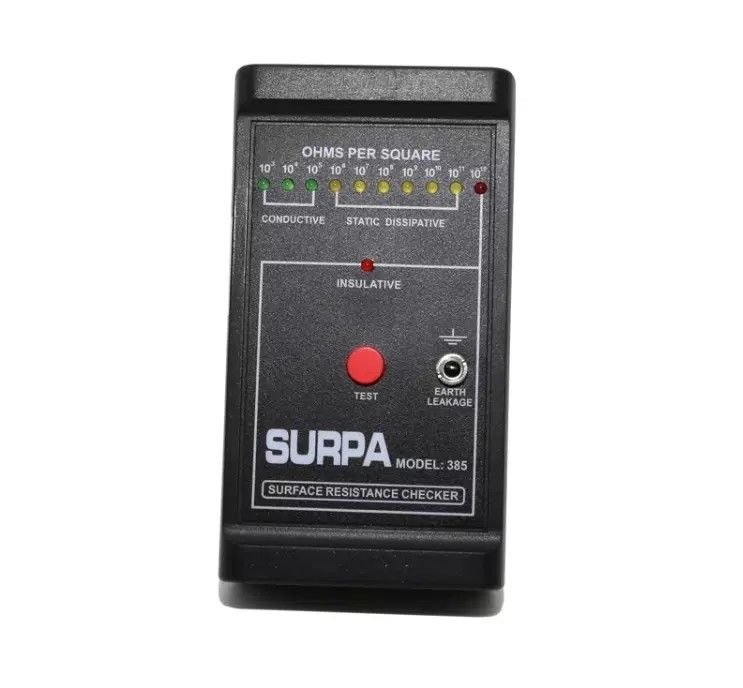

The surface resistivity is conveniently indicated by a row of LEDs covering a total of 10 decades from 103 to 1012 ohms per square.

Specification



Operating Temperature 0 ~50
Relative Humidity 0%~90%RH
Test Voltage 9V
Dimension 137mm(L) × 76mm(W) × 30mm(D)
Weight 120g
Accuracy ± 1/2decade
Repeatability ± 5%

Portable ASTM D-257 ESD 90%RH 9V Surface Resistance Tester 0
