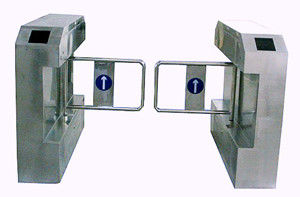

1. Automatic swing turnstile specification

1)Two directions controlled/one direction controlled

2) LED direction indicator
3) Flow Speed:
A) 40 people/minute in the opening mode
B) 25-30 people/minute in the closing mode
4) Illegal invasion sound alarm
5) Anti-strike function
6) Keep open status if the power supply fails

Specifications:
1) Dry contact: DC12V, 10mA
2) RS485 interface
3) Pulse voltage signal, more than 100ms
4) Passageway: ≤700mm
5) Power: AC220V, 50Hz
6) Operating environment: -25 to 60 degree, RH ≤90%
7) Dimensions: ￠168 x1050mm

Can connect various access controllers such as IC/ID reader/writer, button controller, barcode controller, code controller, fingerprint controller, or computer

8) Applications:
Station/exhibition/airport/subway/government/market and so on

2. Reader


2.1.Frequency:13.56KHz

DIM:Length85.6mm × Width53.98mm × Thickness1.8mm

Material:Hard Shell = ABS；Cover Foil = PVC

Color:White , black, grey, blue, yellow

Power requirements: 5-16VDC at 100mA, A linear regulator is recommended

Interface: Weigand

Reader range: 5 - 10 cm

Frequency: 122-128KHz

Operation temperature: -30 C to +60 C

operationg humidity: 5%-95% relative humidity non-condensing

Audio/Visual Indication: Green & Red and Buzzer signal output

Response Time: Less than 0.2 seconds

cable length: 250mm

Weight: 60g

2.2.Wiring :

Red: Power 5-16V

Black: Power ground

Green: Wiegand output D0

White: Wiegand output D1

Brown: Green LED control

Blue: Buzzer control

Yellow: Hold

2.3 LED/Buzzer function description

LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.

Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released

Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)

3. Access Control System

TCP/IP network door access controller

TCP/IP network door access controller is based on TCP/IP communication protocol, which uses network optical cable to transfer data of door control information. It has a built-in internet communication port on its main board and could be connected with router or hub directly through network cable.

By TCP/IP network, the door access control system could manage doors in a same LAN, or a large WAN, or on internet. In reality, each access control main board could be assigned an IP address so the software could visit and manage it individually. For internet control, adopts DDNS(Dynamic Domain Name Service) technology for convenient and efficient online control, by DDNS combined technology, the operator could control the system worldwidely with ease and it is much better than old day’s telephone line control method.

The main difference between TCP/IP and RS485 access control system has two factors, first is the transmission speed, TCP/IP is much faster than RS485 (TCP/IP is 10M/100M Bytes while RS485 is 9600Baud, 1Baud=1 bit per second), second is the capacity of the whole system, the size for RS485 and LAN is 255, the size for WAN or Internet use is unlimited.

Note: Dynamic DNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for this is in allowing an Internet domain name to be assigned to a computer with a varying (dynamic) IP address. This makes it possible for other sites on the Internet to establish connections to the machine without needing to track the IP address themselves. A common use of this door access controller is for running server software on a computer that has a dynamic IP address, as is the case with many consumer Internet service providers.
