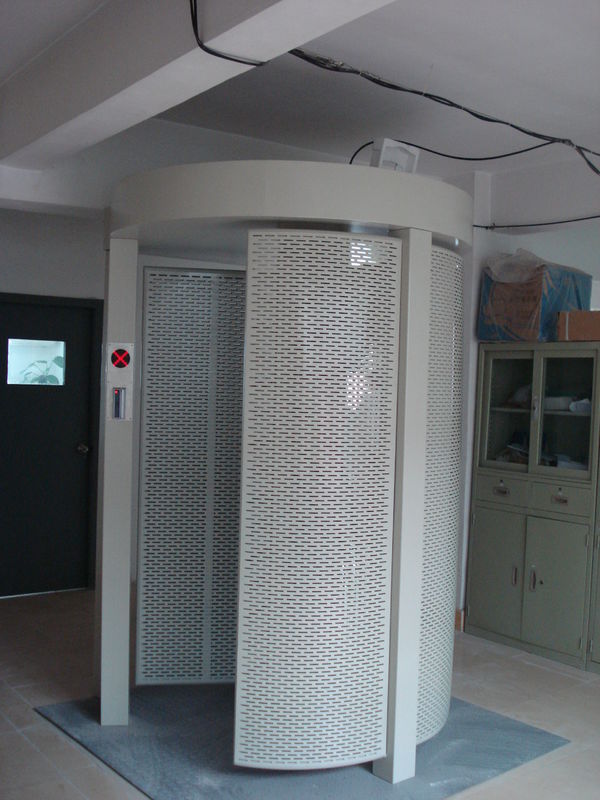

120 Degree Electronic Turnstile Full Height Access Control System 220V 80W

120 Degree Electronic Turnstile Full Height Access Control System 220V 80W

120 Degree Electronic Turnstile Full Height Access Control System 220V 80W
120 Degree Electronic Turnstile Full Height Access Control System 220V 80W 120 Degree Electronic Turnstile Full Height Access Control System 220V 80W

Large Image :  120 Degree Electronic Turnstile Full Height Access Control System 220V 80W Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACE DELIXIN
Certification: CE,SGS
Model Number: DLX005
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(3000-7500)
Packaging Details: Use carton box and export box to pack
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 120Sets/Month
Detailed Product Description
Power Voltage: 220V Control Voltage: 12V
Power Consumption: 80W Input Connecter: Connecting Point Switch Signal
Working Temperature: -40°C---85°C Working R.H: 95%
Structure Material: 202/304 Stainless Steel Weight: 200KG
Application: Access Control System
High Light:

full height turnstile gate

,

full high turnstile

,

Full Height Access Control System

120 Degree Electronic Turnstile Full Height Access Control System 220V 80W



FULL HEIGHT /ROTATION /SPECIAL HEIGHT TURNSTILE

1. The rotation turnstile use advance driver control technology. Can satisfy



2. Different style of building to access control requirements by changing design in a great deal of range. It is used for safety protect of external 3.



3. equipment of factory, sport ground, entertainment place, Park and so on.



4. The rotation turnstile with automatic enter-exist design and very complete system is extensively used. It can connect the reader of access       control, check-in ticket system in order to prohibit unauthorized entrance.

Structure
2.1 Main structure
Use special treatment stainless.
2.2 Driver structure
Driver structure compile to the control system, drive system, electronic lock together. It is small volume, lower noise, maintenance free. His special suspension drive style is ACEPLAS’S new own innovation

technology.

2.3 Main drive motor and control
The drive motor is brushless direct current motor. The motor volume and strength control advance place in the world. The highest precise automatic drive system under small power replace the alternating current motor drive under current VVVF drive control.

His main character is small volume, higher output power, lower noise

Maintenance free, lower moment of inertia control, highest precise control. This is not satisfied by the alternating current motor drive.

 The direct-current motor of the rotation turnstile use PWM modulation controller digital quantity by hall element and increment axle coder with automatic adjusting speed and fix precise location.

3.Running ways:
1.Manual: *push with strength * Free push
2.Automatic start/stop way
3.Automatic continue running way
4.Safety running way(Need match reader,loading system or animal distinguish system)

option:
• Under Stopping power, can manual open lock.;

• Can add reader, interphone, coin-operated vending machine and so on;
• Install expansion joint spare parts in aluminum cover;
• Issuing signal equipment ;Inspection generator with equipment;Urgent power supply;
• Control console in the long distance or Control board(Open,close ,reject);
• Waterproof cover;
• Install decoration board and waterproof cover;
• Install ceil board.Leaking pipe replace the waterproof cover

(Customer can connect the pipe to drainage system);
• Install light. Can install many items on the cover.

The rotation turnstile technical data:

Model:DLX004

  • Power voltage:220V
  • Control voltage:12V
  • Power:80W
  • Input connecter:Connecting point switch signal
  • Working Temperature:-40°C----85°C
  • Working R.H:95%
  • Structure material:202/304 stainless steel
  • Weight:200KG
  • Size:W1630*D1450*H2300MM

Function character:

  • Brush card, manual operate ,automatic return orginal place.
  • Single ,double access
  • Every time the turnstile rotate 120 degree
