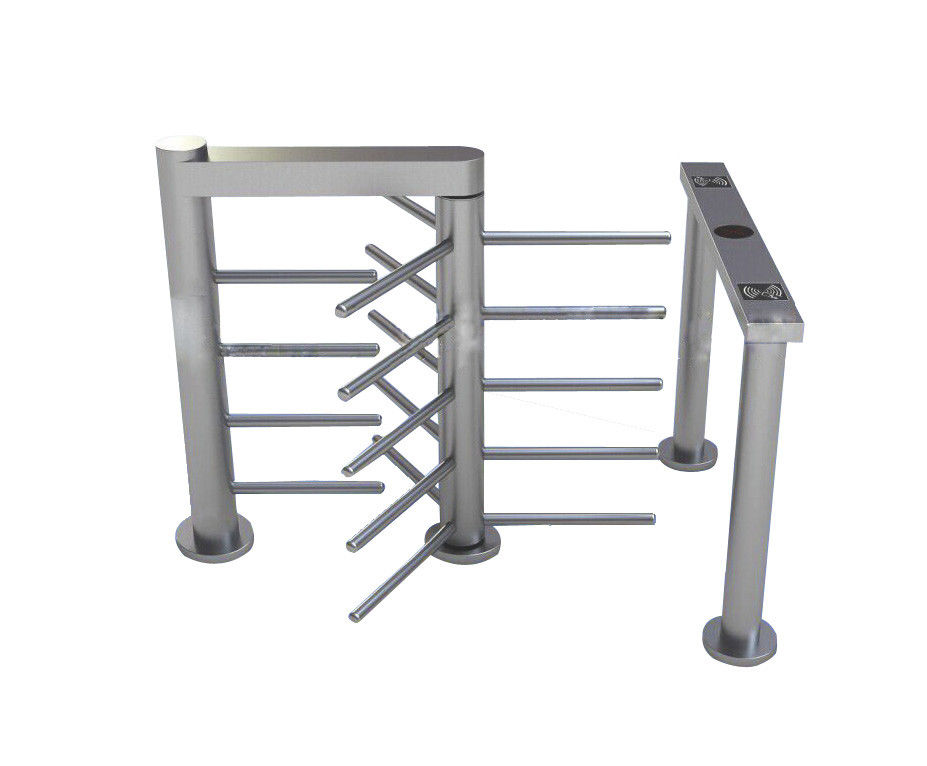

120° Rotating High Security Turnstile Full Height Turnstile Pedestrian Barrier
1. Basic Description:
The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.
This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .
Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.
Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.
◇ external dimensions: 1600X1200X1300
◇ brake lever length: 600(mm)
◇ weight: 90KG
◇ brake lever steering: one-way
◇ working environment: indoor and outdoor (preferably with awning)
Functions & Features
1) Automatically low noise mechanism core equipped, highly cost-performance
2) Sense positioning, reducing mechanical impact make lifetime longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed pass
Anti-following : prevent illegal passing
Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
9) The rotary wings will be locked automatically if the system do not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs on earth
11) Programmable signal separate control : pass time,pass speed etc. parameter
12) RS232/RS485 interface meet all kind of communications or wireless connection
Compatible IC/ID card ,flexible couple
Long-distance management through COMPUTER
15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
◆ high security occasions: prisons, military places, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.
