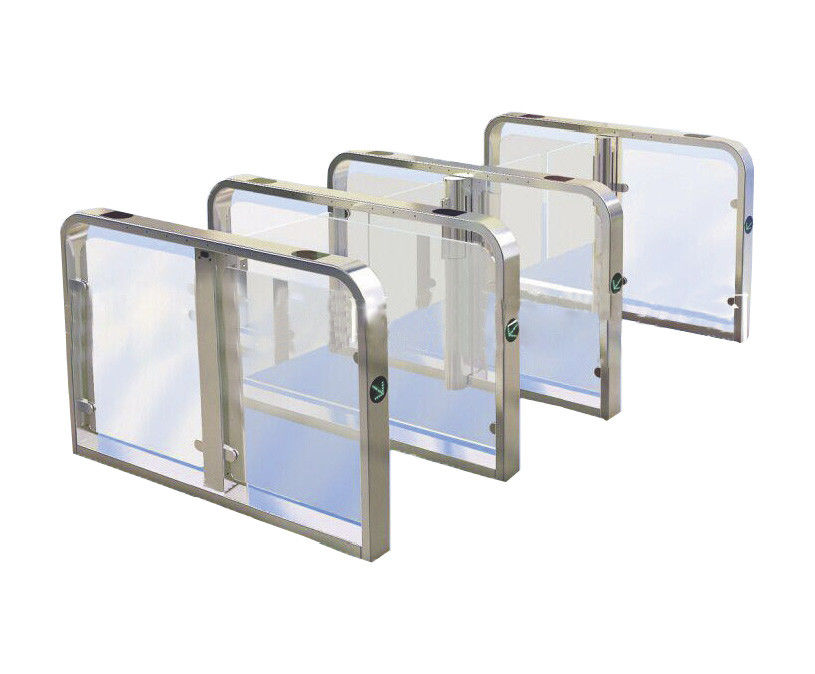

Business Building Speed Gate Turnstile Stainless Steel Arc Shaped Fast Gate

Business Building Speed Gate Turnstile Stainless Steel Arc Shaped Fast Gate

Business Building Speed Gate Turnstile Stainless Steel Arc Shaped Fast Gate
Business Building Speed Gate Turnstile Stainless Steel Arc Shaped Fast Gate

Large Image :  Business Building Speed Gate Turnstile Stainless Steel Arc Shaped Fast Gate Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: DLX-246
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(1-2000)
Packaging Details: Carton box or Wooden box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300Sets/Month
Detailed Product Description
Material: 304Stainless Steel Power Supply: AC220V±20%V, 50Hz
Size: L1400*W100*H1000mm Weight: 70kg
Brake Rod Length: 300mm Traffic Speed: 40people/min
Work Environment: Outdoor
High Light:

turnstile entrance gates

,

fastlane turnstiles

Business Building Speed Gate Turnstile Stainless Stee Arc Shaped Fast Gate



Product Classification



Model:DLX-246



Product Presentation

1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

2. Dimensions: Length1400xWidth100× height 1000 (mm)

3. Weight:70kg.

4. Brake lever length: 300(mm)

5. Brake lever steering: one-way and two-way (optional)

6. Working environment: indoor and outdoor(It's better to have a shelter outside)



Standard featuresInfrared * mechanical double clamping function: automatic mechanical clamping is safer and more reliable when the gate is running;
◆ the electric control is driven by servo motor, encoder chuck movement, anti-collision durable, stable and reliable, self-check on electricity, low failure rate;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ crossing alarm function: if the pedestrian does not swipe the card to enter the channel, the device will alert the pedestrian to swipe the card;
◆ reverse traffic alarm switch function: after the pedestrian swips the card, reverse traffic, equipment alarm switch off at the same time;
◆ anti-trailing function: when the first person swipes the card to pass, the second person does not swipe the card to follow and alarm;
◆ delay function: prevent the gate from hitting the bicycle;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or one-way swipe card plus free access;
Various control functions: external button, remote control, bar code meter, IC or ID and other reading and writing devices;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the brake shall return to the position and re-lock to cancel the passage, the time is 1-60 seconds.



Extend the functionality

◆ anti-collision function: the gate is hit by external force in the closed state, can choose not to hit the brake lever after collision or can hit the brake lever after automatic return function.



Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.



To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
