Material: | 304Stainless Steel | Power Supply: | AC220V±20%V, 50Hz |
---|---|---|---|
Brake Rod Length: | 550-600mm | Traffic Speed: | 40people/min |
Dam-board Color: | Clear Or Blue | Work Environment: | Indoor And Outdoor |
Drive Mode: | DC Electric Motor | Output: | AC 24V,DC 12V, |
Highlight: | turnstile security gates,entrance turnstiles,ce approval flap barrier gate |

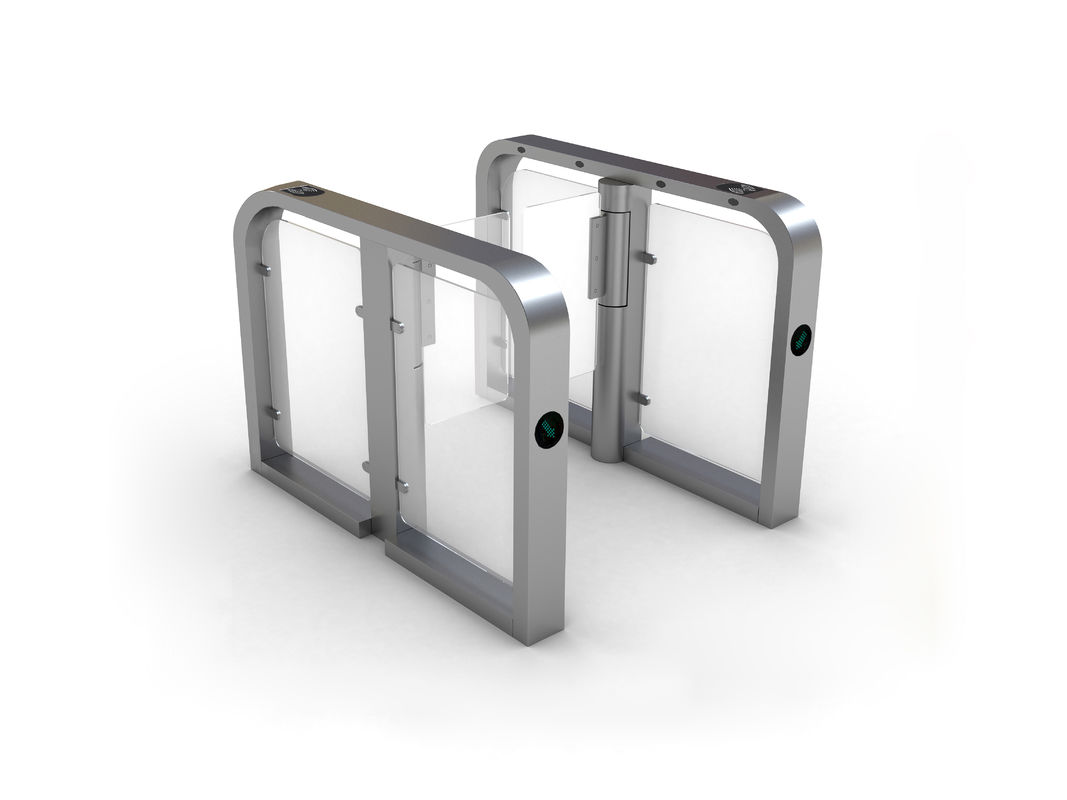

CE Approval Automatic Systems Turnstiles , Automatic Flap Barrier Gate
Usage way: The turnstile provides a basic gate to control access smoothly and effectively by basic operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
1. Automatic Small Swing turnstile
1.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 420*330*980mm
Weight: 45kg
Arms length: 510mm
Logic voltage: 24v
1.2. Function:
1.2.1.Single/double walkway---controlled in one direction or both
1.2.2.A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
1.2.3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.
1.2.4 Rotation indication: can rotate 15 degree angle to indicate pass.
1.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
1.4. Interface: one standard port-RS485 or Switch signal.
1.5. Can choose to add Control panel with count and LED digital function.
Stand tripod way: Automatic
1.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
1.7. Transit speed: 20——30 persons per minute
1.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
1.9. Applications:
Station/exhibition/airport/subway/government/market and so on
2. Reader
2.1. Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS;Cover Foil = PVC
Color:White , black, grey, blue, yellow
Power requirements: 5-16VDC at 100mA, A linear regulator is recommended
Interface: Weigand
Reader range: 5 - 10 cm
Frequency: 122-128KHz
Operation temperature: -30 C to +60 C
operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
cable length: 250mm
Weight: 60g
2.2.Wiring :
Red: Power 5-16V
Black: Power ground
Green: Wiegand output D0
White: Wiegand output D1
Brown: Green LED control
Blue: Buzzer control
Yellow: Hold
2.3 LED/Buzzer function description
LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.
Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released
Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)
3. Access Control System
TCP/IP network door access controller
TCP/IP network door access controller is based on TCP/IP communication protocol, which uses network optical cable to transfer data of door control information. It has a built-in internet communication port on its main board and could be connected with router or hub directly through network cable.
By TCP/IP network, the door access control system could manage doors in a same LAN, or a large WAN, or on internet. In reality, each access control main board could be assigned an IP address so the software could visit and manage it individually. For internet control, adopts DDNS(Dynamic Domain Name Service) technology for convenient and efficient online control, by DDNS combined technology, the operator could control the system worldwidely with ease and it is much better than old day’s telephone line control method.
The main difference between TCP/IP and RS485 access control system has two factors, first is the transmission speed, TCP/IP is much faster than RS485 (TCP/IP is
Note: Dynamic DNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for this is in allowing an Internet domain name to be assigned to a computer with a varying (dynamic) IP address. This makes it possible for other sites on the Internet to establish connections to the machine without needing to track the IP address themselves. A common use of this door access controller is for running server software on a computer that has a dynamic IP address, as is the case with many consumer Internet service providers.
