| Width: | 1.37meter | Length: | 30m |
|---|---|---|---|
| Thickness: | 0.3mm | Color: | Yellow |
| ESD Reading: | 10e6-10e9 | Application: | Industry, Cleanroom, Hospital, Home Etc. |
| High Light: | Cleanroom Conductive Lamination Film,ESD Curtain Conductive Lamination Film,30m Length Antistatic Pvc Film |
||
Cleanroom Industry Conductive Lamination Black Yellow Film Antistatic Pvc Film ESD Curtain
Upper side resistance: 104 – 106 Ω
Under resistance: 104 – 106 Ω
Anti-static PVC curtain can be utilized as a barrier wall or protective curtain material in the ESD sensitive environment;

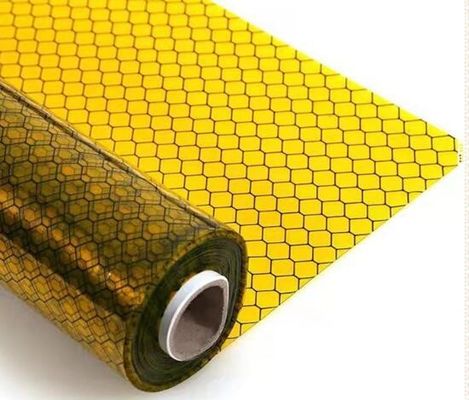

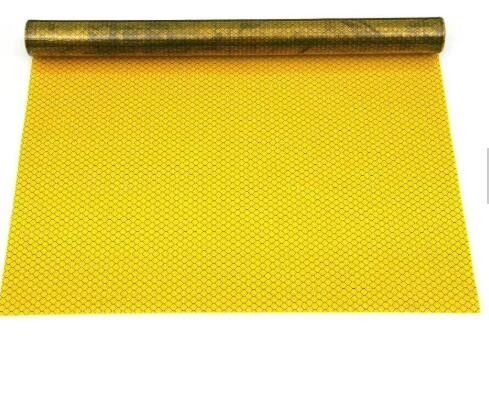

Made of anti-static PVC curtain, continuous honeycomb black carbon lines are printed on one side of PVC sheet, 0.5mm thickness PVC curtain has good draping ability so that it can be used as protective cover or instruments where electro-static should be controlled; Carbon lines are printed on anti-static PVC curtain;
| code | ESD grid curtain | ESD Black conductive curtain | ESD Transparent curtain |
| Surface resistance | Upper side 104 ~106 Ω; Under side 109– 1011 Ω | Upper side 104 ~106 ; Under side 104– 106 Ω | Upper side 104 ~106Ω; Under side 108 – 1011 Ω |
| Volume resistance | 1*1011 | 1*1011 | 1*1011 |
| voltage | 25V | 25V | 15V |
| Discharging time | 1.65/100% | 1.65/100% | 1.58/100% |
| property | Permanent | Permanent | Permanent |
Antistatic Curtain Specification:
| 1) | Material: anti-static pvc |
| 3) | Thickness: 0.3mm, 0.5mm.1mm |
| 4) | Size: 1.37*30m/1.37*30m |
| 6) | Static decay: 0.5s |
| 7) | Tensile strength: 1.8kg/mm2 |
| 8) | Shrinkage rate: 170%-210% |
| 9) | Elongation rate: 1% |
ESD Cutain Packaging:
| pc/ctn: 1 |
| G.W./Ctn (Kgs): 19 |
| Meas. (mm): 140*140*1400 |
| Volume (CBM):0.027 |
