Size: | L420*W330*H980MM | Interface: | TCP/IP |
---|---|---|---|
Tester Display: | LCD | Application: | ESD Inspection And Access Control System |
Control Mode: | Automatic | Drive Mode: | DC Electric Motor |
Lane Width: | 500-1000mm | Usage Life: | More Than 600 Million Times |
Highlight: | vertical tripod turnstile,fastlane turnstiles |

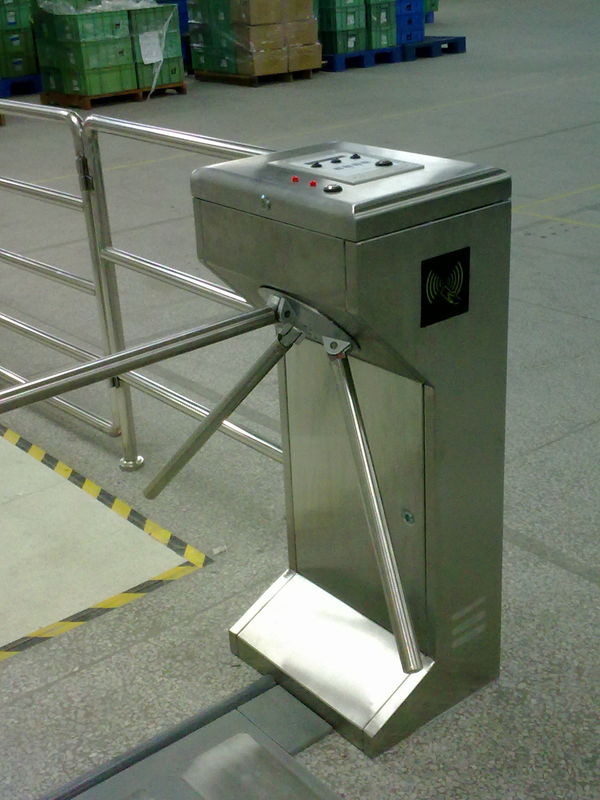

ESD Speed Gate Turnstile Simple Economic With Tester / Different Reader
I. Tripod turnstile
Descriptions: the turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
1. Standard Vertical tripod turnstile
1.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 420*330*980mm
Weight: 45kg
Arms length: 510mm
Logic voltage: 24v
1.2. Function:
1.2.1.Single/double walkway---controlled in one direction or both
1.2.2.A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
1.2.3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.
1.2.4. Rotation indication: NO.
1.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
1.4. Interface: one standard port-RS485 or Switch signal.
1.5. Can choose to add Control panel with count and LED digital function.
Stand tripod way: Use hand to press tripod, then return to origin place.
1.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
1.7. Transit speed: 20——30 persons per minute
1.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
1.9. Applications:
Station/exhibition/airport/subway/government/market and so on
2. Automatic Vertical tripod turnstile
2.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 420*330*980mm
Weight: 45kg
Arms length: 510mm
Logic voltage: 24v
2.2. Function:
2.2.1. Single/double walkway---controlled in one direction or both
2.2.2. A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
2.2.3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.
2.2.4 Rotation indication: can rotate 15 degree angle to indicate pass.
2.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
2.4. Interface: one standard port-RS485 or Switch signal.
2.5. Can choose to add Control panel with count and LED digital function.
Stand tripod way: Automatic
2.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
2.7. Transit speed: 20——30 persons per minute
2.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
2.9. Applications:
Station/exhibition/airport/subway/government/market and so on
II. iDS-610 – ESD Wrist Strap and Shoe Tester
III. ID or IC reader
1. Specification:
ID CARD
Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS;Cover Foil = PVC
Color:White , black, grey, blue, yellow
Power requirements: 5-16VDC at 100mA, A linear regulator is recommended
Interface: Weigand
Reader range: 5 - 10 cm
Operation temperature: -30 C to +60 C
operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
cable length: 250mm
Weight: 60g
2. Wiring :
Red: Power 5-16V
Black: Power ground
Green: Wiegand output D0
White: Wiegand output D1
Brown: Green LED control
Blue: Buzzer control
Yellow: Hold
