|Material:||304Stainless Steel||Power Supply:||AC220V±20%V, 50Hz|
|Lane Width:||600-1200mm||Traffic Speed:||40people/min|
|Color:||Stainless Steel Wire Drawing Or Spray, Color Optional||Work Environment:||Indoor And Outdoor (Anti-rain Cover)|
|Measuring Mode:||Infrared Thermometer|
turnstile security gates,

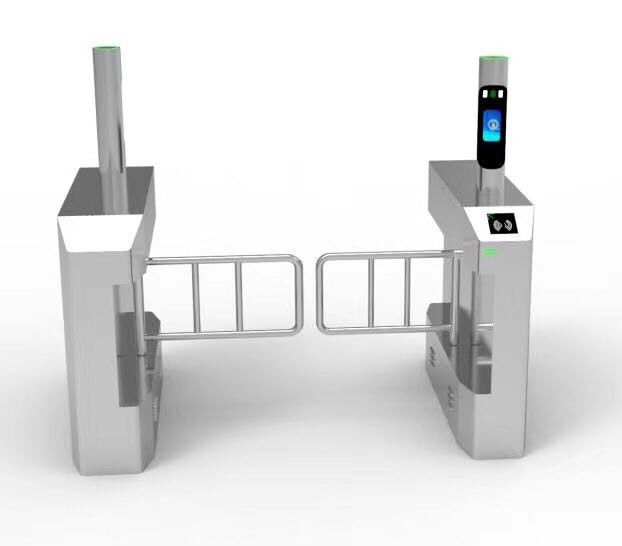

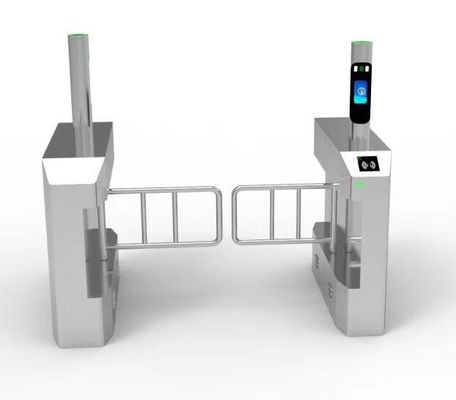

High Speedgate Turnstile Pedestrian Control With Thermometer Facial Recognition System
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

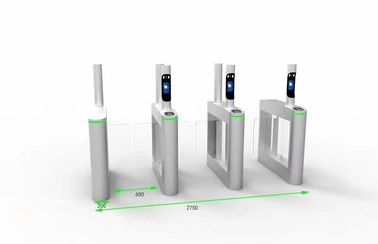

2. Dimensions: Length1000xWidth300× height 1000 (mm)
4. Brake lever length: 600(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)
◆ mechanical clamping function: automatic mechanical clamping during the operation of the gate is safer and more reliable;
◆ the electric control is driven by dc motor, which is stable and reliable.
◆ delay function: prevent the gate from hitting the bicycle;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or one-way swipe card plus free access;
Extend the functionality
◆ anti-collision function: the gate is hit by external force in the closed state, can choose not to hit the brake lever after collision or can hit the brake lever after automatic return function.
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.
To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
