|Material:||304Stainless Steel||Power Supply:||AC220V±20%V, 50Hz|
|Brake Rod Length:||550-600mm||Traffic Speed:||40people/min|
|Dam-board Color:||Clear Or Blue||Work Environment:||Indoor And Outdoor|
turnstile security gates,
Steel Automatic Systems Turnstiles

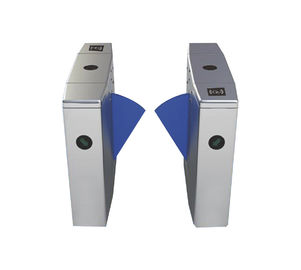

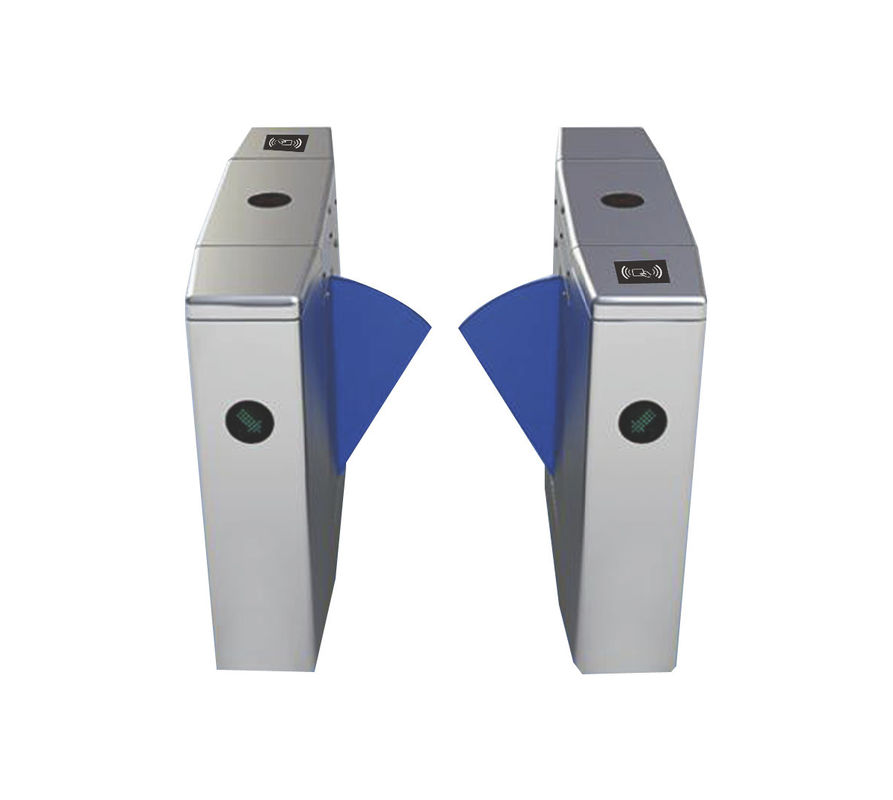

Efficient and convenient Stainless steel circular bead Flap Turnstile DLX-311
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,
2. Dimensions: Length1200xWidth300× height 1000 (mm)
4. Brake lever length: 750-850(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)
Electronic clamping function: stop immediately when the gate closes;
◆ the electric control is driven by dc motor, which is stable and reliable.
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ crossing alarm function: if the pedestrian does not swipe the card to enter the channel, the device will alert the pedestrian to swipe the card;
◆ reverse traffic alarm switch function: after the pedestrian swips the card, reverse traffic, equipment alarm switch off at the same time;
◆ anti-trailing function: when the first person swipes the card to pass, the second person does not swipe the card to follow and alarm;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or unilateral swipe card plus free access;
Various control functions: external button, remote control, bar code meter, IC or ID and other reading and writing devices;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the gate will be closed again to cancel the passage, the time is 1-60 seconds.
Extend the functionality
◆ selection of soft leather gate: in order to better protect pedestrian traffic safety, the door body can choose red or blue foam gate.
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.
To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
