| Color: | Black Or Clear | ESD Value: | 10E5 |
|---|---|---|---|
| Size: | ,24mm,32mm,44mm,56mm,72mm | Material: | PS/PC |
| Cover Tape: | Can Provide | Reel: | Can Provide |
| High Light: | PS Material Embossed Carrier Tapes,Universal SMD Embossed Carrier Tapes,IC chips Embossed carrier tapes |
||

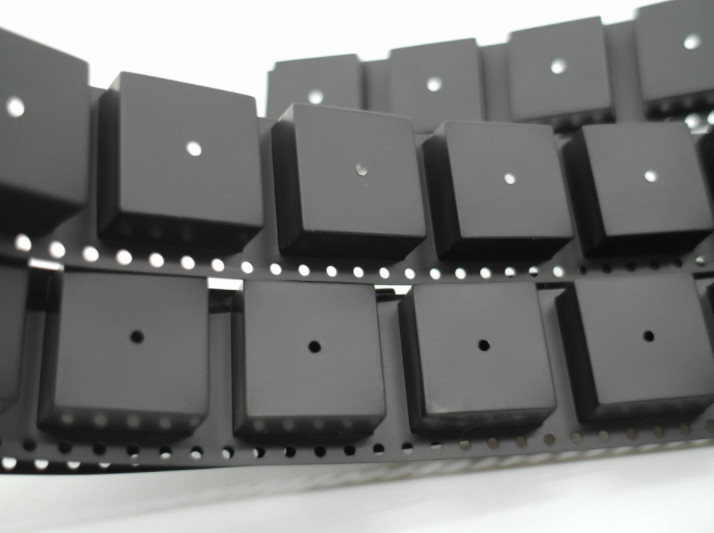

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly
Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
Cover tape
heating activity cover tape specification
PG-178SS Cover Tape can paste PS,PC,PET Carrier Tape. It is steady and excellent age property. It suits for SMT component package material.
STRUCTURE:
Base material:PET FILM
Adhesive agent:Anti-heating activity adhesive agent
| Item | Specification data | Remark |
|
Visual
Transparent |
Transparent Visible Light 109-11 DLX-178SS V.L.81% |
|
| Thickness | DLX-178SS 0.055mm±0.005mm | ASTM D-374 |
| Surface resistance |
Sealing side 109-11Ω/Square Base side 109-11Ω/Square T=23℃ RH=65% |
ASTM D-257 |
| Extensile strength |
MD/ 22.4 TD/ 25.9 |
ASTM D-882 |
| Extensibility % |
MD/ 147 TD/ 120 |
ASTM D-882 |
| POS | Refer to attachment 一 | EIA-481 |
| Aging test on POS | Refer to attachment二 | EIA-481 |
| Length | Standard length every roll 300+3M/500M+3M | |
| Width | 5.4 mm -97.5 mm | |
| Guarantee time | One year after get tape |
Plastic Wheel reel
PLASTIC WHEEL SPEC FORM
|
Embossed carrier tape |
Cover Tape |
Each item size |
||||||
| (w)±0.15m/m | ±0.15m/m | A | B±0.5 | D±1.0 | C±0.2 | N±1.0 | H±0.1 | G±2.0 |
| 8 | 5.4 | 330 | 2.2 | 20.2 | 13 | 100 | 8.5 | 13.1 |
| 12 | 9.3 | " | " | " | " | " | 12.5 | 17.1 |
| 16 | 13.3 | " | " | " | " | " | 16.5 | 21.1 |
| 24 | 21.3 | " | " | " | " | " | 24.5 | 29.1 |
| 32 | 25.5 | " | " | " | " | " | 32.5 | 37.1 |
| 44 | 37.5 | " | " | " | " | " | 44.5 | 49.1 |
| 56 | 49.5 | " | " | " | " | " | 56.5 | 61.1 |
| 72 | 66.5 | " | " | " | " | " | 72.5 | 77.1 |
| 88 | 81.5 | " | " | " | " | " | 88.5 | 93.1 |
WHEEL SPEC LIST
| STYLE | S．R． | STORAGE | SCRUBINGTIMES | COLOR |
| CONDUCTIVE | <107 ohm/sp | 1~2YEAR | 1000times above | BLACK |
| A/S | <108~12 ohm/sp | 1~2YEAR | 1000 times above | BLUE,WHITE,NATURE |
| COMMON | <1013 ohm/sp | 1~2YEAR |
Carrier tape match with cover tape range of size (mm)
|
Carrier Tape |
8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
|
Cover Tape |
5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 66.5 | 81.5 |
Dimension
| OUTER DIA. | HUB SIZE | WIDTH DIM. |
| 13inch | 4 OR 7inch | 8mm~88mm |
| 15inch | 4 OR 7inch | 8mm~88mm |
| 7inch | 2 OR 2-1/2inch | 8mm 12mm 16mm |
