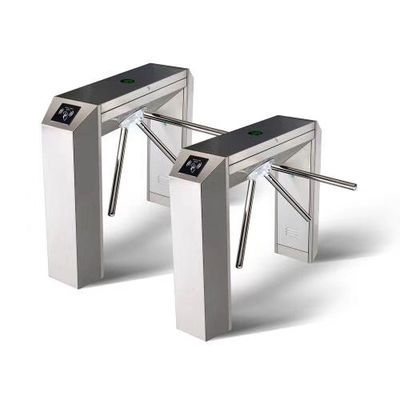

Bridge Type ESD Turnstile Octagonal Three Roll Vertical Tripod Turnstile

Bridge Type ESD Turnstile Octagonal Three Roll Vertical Tripod Turnstile

Product Classification

Fully automatic model: DLX-105
Semi-automatic model: DLX-115
Manual model: DLX-125


==============================================

Product Presentation
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,
2. Dimensions: length 1200× width 280× height 990 (mm)
3. Weight:50kg.
4. Brake lever length: 500(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)


==================================================================

Semi-automatic three roll turnstile
Standard functions:

◆ automatic reset function: through the spring damper and balance mechanism to ensure that the brake is always in a safe and stable state;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ a variety of access mode function: you can set the gate two-way card or one-way free access two kinds of access mode;
◆ pass request memory function: after swiped the card several times, the gate will remember the number of passers and close the gate after all the pedestrians have passed.
◆ power off the lever function: after the power off the brake, the lever automatically falls to facilitate personnel evacuation;
◆ anti-collision function: when the brake lever is locked, it cannot be pushed by external force;
Various control functions: external button, remote control, bar code meter, IC or ID and other reading and writing devices;
Anti-trailing function: lock automatically when the lever turns 120 degrees after each pass.
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic lock function: if the card is not passed within the specified time, the brake machine shall re-lock to cancel the pass, the time is 1-60 seconds.

Extended function

◆ traffic limit function: the number of traffic can be limited by the software to meet the special situation of personnel management;
◆ counting function: can increase the counter statistics the number of people in and out;
◆ anti-reverse passage function: in the process of passage, the brake lever can only move forward after it has been rotated at a certain Angle, to prevent more than one jam;
◆ illegal intrusion alarm: when the pedestrian does not swipe the card to force through, the brake will alarm to prompt the pedestrian to swipe the card to pass;
◆ hydraulic buffer function: in order to reduce the running metal impact sound, can increase the hydraulic buffer;

Product Parameter

◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 30 people/min (IC card);
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional;

SUIT OCCATIONS

◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.

=================================================================================

Automatic three roll turnstile

Standard functions

◆ ultra-quiet design: the machine adopts the third generation of quiet design, running smoothly without impact noise;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ automatic access function: after card reading, the brake lever will automatically operate at a certain Angle to unlock, and the brake will automatically drive people through;
◆ a variety of operating mode functions: by setting the switch can be set to the brake normally open, normally closed two operating modes;
◆ pass memory function: after the pedestrian swiped the card for several times, the gate will remember the number of passers and close the gate after all passers have passed.
◆ automatic power on lever function: the brake automatically rotates after power on to make the lever automatic power on without human operation;
◆ power off the lever function: after the power off the brake, the lever automatically falls down to facilitate personnel evacuation and meet the requirements of fire control;
◆ anti-collision function: when the pedestrian does not swipe the card to push the brake lever, the brake lock;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the brake shall return to the original position and cancel the pass, the time is 1-60 seconds.

Extended function

◆ counting function: can increase the counter statistics the number of people in and out;
◆ anti-reverse passage function: in the process of passage, the brake lever can only move forward after it has been rotated at a certain Angle, to prevent more than one jam;
◆ illegal break in alarm function: when the pedestrian does not swipe the card to force through, the brake will alarm to prompt the pedestrian to swipe the card to pass.

Product Parameter

◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 30 people/min (IC card);
◆ motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.
