Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material

Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material

Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material
Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material

Large Image :  Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ACE DELIXIN
Certification: ROHS,SGS
Model Number: 8mm-88mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD(0.1-6)/meter
Packaging Details: carton box packing
Delivery Time: 5-8days
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 200000meters per month
Detailed Product Description
Color: Black Or Clear ESD Value: 10E5 Or NO
Size: 16mm,24mm,32mm,44mm,56mm,72mm,88mm Material: PC/PET
Cover Tape: Can Provide Reel: Can Provide
High Light:

embossed taping reel

,

tape carrier package

,

Black Tape Carrier Package

Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material

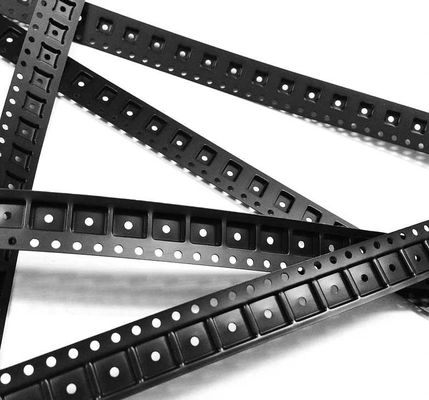

Carrier tape

8-88mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

Cover tape

Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:

Carrier tape (MM) 8 12 16 24 32 44 56 72 88
Cover Tape (MM) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5

Plastic Reel

Environment-friendly PS anti-static materials,blue /black/white

Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.



Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material 0Black Tape Carrier Package Transparent Anti Static Tape Smt Pc Ps Pet Material 1
