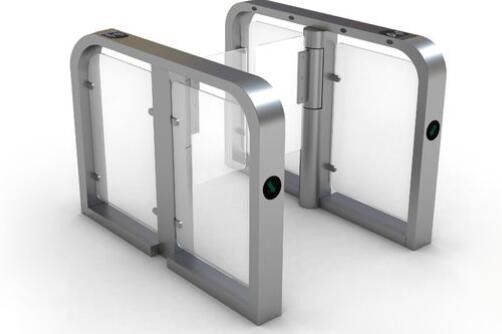

20W Arc Brake Cylinder Pendulum SS304 ESD Turnstile

20W Arc Brake Cylinder Pendulum SS304 ESD Turnstile


Large Image :  20W Arc Brake Cylinder Pendulum SS304 ESD Turnstile Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: DLX-244
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(1-2000)
Packaging Details: Carton box or Wooden box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300Sets/Month
Detailed Product Description
Material: 304Stainless Steel Power Supply: AC220V±20%V, 50Hz
Size: L220*W180*H1050mm Weight: 30kg
Brake Rod Length: 600mm Traffic Speed: 40people/min
Color: Stainless Steel Wire Drawing Or Spray, Color Optional Work Environment: Indoor And Outdoor
High Light:

Cylinder Pendulum Cylinder Pendulum


Arc Brake ESD Turnstile


SS304 ESD Pedestrian Turnstile

Outdoor ESD Turnstile Arc Shape Brake Cylinder Pendulum 304 Stainless Steel


Product Classification






Product Presentation

1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

2. Dimensions: Length1400xWidth180× height 1000 (mm)

3. Weight:70kg.

4. Brake lever length: 500(mm)

5. Brake lever steering: one-way and two-way (optional)

6. Working environment: indoor and outdoor(It's better to have a shelter outside)





Standard features
◆ mechanical clamping function: automatic mechanical clamping during the operation of the gate is safer and more reliable;
◆ the electric control is driven by dc motor, which is stable and reliable.
◆ delay function: prevent the gate from hitting the bicycle;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or one-way swipe card plus free access;


===================================================================================== =========


Extend the functionality
◆ anti-collision function: the gate is hit by external force in the closed state, can choose not to hit the brake lever after collision or can hit the brake lever after automatic return function.





Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.




To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
