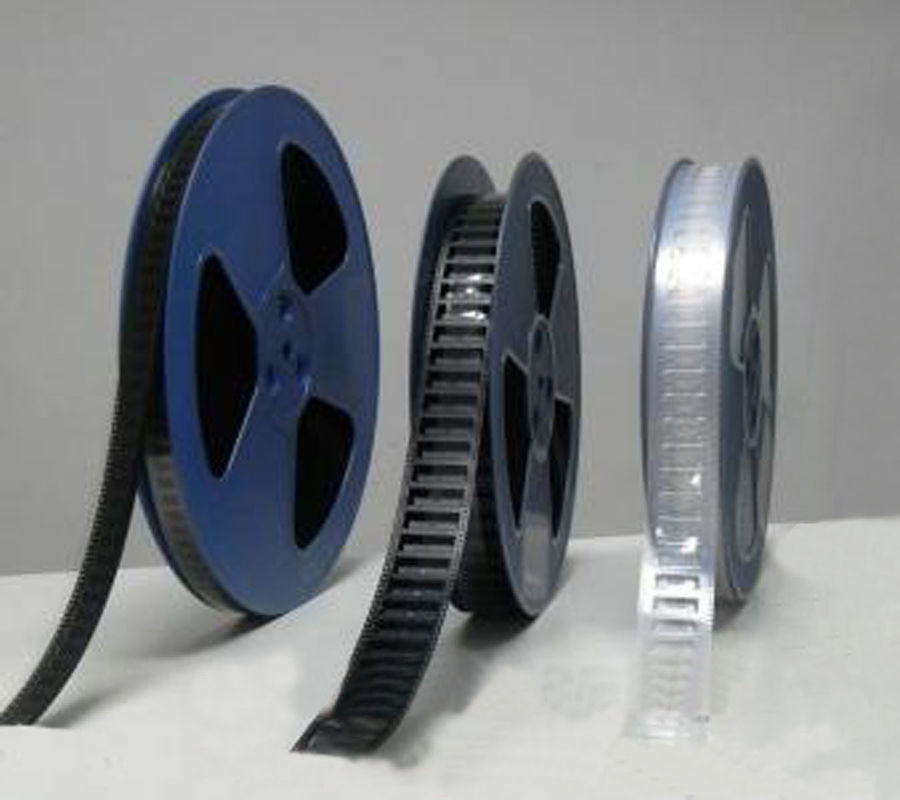

Conductive Embossed Carrier Tape With Reel Cover Tape Accurate Dimensions
Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
Carrier tape comply to EIA-481 standard
Major style
1. Hole of carrier tape on the edge
1.1 Only have one line hole on the one side 1.2 Have one line hole on each side.
2. The center hole of carrier tape
2.1 With center hole 2.2 Without center hole
3. The raw material of carrier tape
3.1 PS sheet 3.2 PET sheet
3.1.1 Transparent PS sheet 3.2.1 Transparent PET sheet
3.1.2 Black antistatic PS sheet. 3.2.2 Black antistatic PET sheet.
3.1.3 Black conductive PS sheet
3.3 PC sheet 3.4 PP sheet
3.3.1 Transparent PC sheet 3.4.1 Transparent PP sheet
3.3.2 Black antistatic PC sheet 3.4.2 Black antistatic PP sheet.
3.3.3 Black conductive PC sheet 3.4.3 Black conductive PP sheet.
4. The antistatic property of carrier tape
4.1 Conductive carrier tape 4.2 Antistatic carrier tape 4.3 Non-antistatic carrier tape
5.The width of carrier tape
5.1 Can produce the below width carrier tape8mm12mm16mm24mm32mm44mm56mm72mm
6. The function of carrier tape
It is used be to pack IC,connector,quartz crystal,mini transformer,inductance,winding,switch,mobile-phone related accessories,diode,audion,resistance,capacitor and so on.
Cover tape
PSA COVER TAPE SPECIFICATION
PSA Cover Tape is excellent tape. It can paste PS,PC,PET Carrier Tape. It is steady property and suit for SMT component package material.
Base material:PET FILM
Adhesive agent: activity adhesive agent.
Color: Transparent
POS: EIA-481
Length: 200/300/500M
Width5.4 -97.5 mm
Plastic reel
PLASTIC WHEEL SPEC FORM
Embossed carrier tape |
Cover Tape |
Each item size |
||||||
width±0.15m/m | ±0.15m/m | A | B±0.5 | D±1.0 | C±0.2 | N±1.0 | H±0.1 | G±2.0 |
8 | 5.4 | 330 | 2.2 | 20.2 | 13 | 100 | 8.5 | 13.1 |
12 | 9.3 | " | " | " | " | " | 12.5 | 17.1 |
16 | 13.3 | " | " | " | " | " | 16.5 | 21.1 |
24 | 21.3 | " | " | " | " | " | 24.5 | 29.1 |
32 | 25.5 | " | " | " | " | " | 32.5 | 37.1 |
44 | 37.5 | " | " | " | " | " | 44.5 | 49.1 |
56 | 49.5 | " | " | " | " | " | 56.5 | 61.1 |
72 | 66.5 | " | " | " | " | " | 72.5 | 77.1 |
88 | 81.5 | " | " | " | " | " | 88.5 | 93.1 |
WHEEL SPEC LIST
STYLE | S.R.VALUE | STORAGE TIMES | SCRUBINGTIMES | COLOR |
Conductive | <107 ohm/sq | 1~2Year | Above 1000times | Blue ,White,Nature |
Antistatic | <108~12 ohm/sq | 1~2Year | Above 1000times | Blue ,White,Nature |
Standard | <1013 ohm/sp | 1~2 year | Above 1000times |
Blue ,White,Nature |
Carrier tape Matching cover tape size (mm)
Carrier Tape |
8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
Cover Tape |
5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 66.5 | 81.5 |
Plastic Reel Dimension
OUTER DIA. | HUB SIZE | WIDTH |
13" | 4" OR 7" | 8mm~88mm |
15" | 4" OR 7" | 8mm~88mm |
7" | 2" OR 2-1/2" | 8mm 12mm 16mm |
