Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape

Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ACE DELIXIN
Certification: ROHS,SGS
Model Number: 8mm-88mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD(0.1-6)/meter
Packaging Details: carton box packing
Delivery Time: 5-8days
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 200000meters per month
Detailed Product Description
Color: Black Or Clear ESD Value: 10E5 Or NO
Size: Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm Material: PS/PC
Cover Tape: Can Provide Reel: Can Provide
High Light:

SMT Packing Carrier Tape Reel

,

SMD Packing Carrier Tape Reel

,

Plastic Smd Carrier Tape Spool

Factory Directly Grey Card Paper Smd Carrier Tape Reel Plastic Reel Spool Cover Tape For SMD SMT Packing

Products Description

Features

1. There are two kinds of raw materials: grey card paper or PS . 4. Different styles can be customized according to customer's products to meet customer's product packaging requirements. 3. The carton is made of K=K material to ensure that the products will not be damaged during delivery.

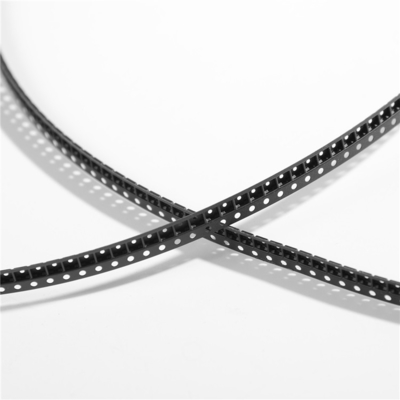

Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.



Cover tape

Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:

Carrier tape (MM) 8 12 16 24 32 44 56 72 88
Cover Tape(MM) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5

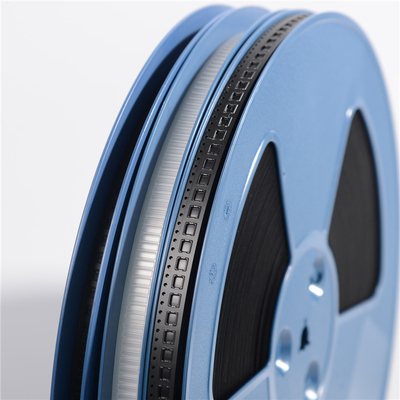

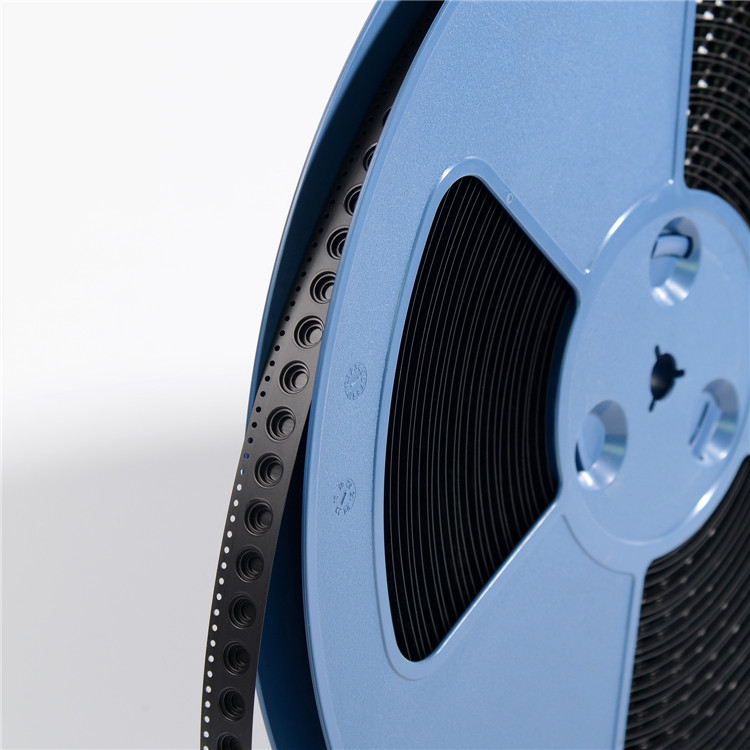

Plastic reel

Environment-friendly PS anti-static materials,blue /black/white

Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.

For More Information...



Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape 0Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape 1
