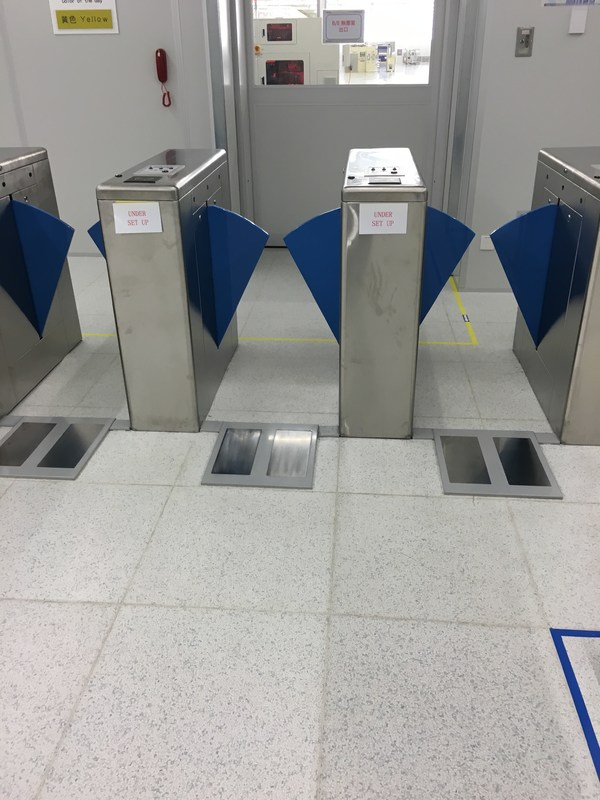

High Speed ESD Turnstile Stainless Steel With Reader / ESD Gate Tester

High Speed ESD Turnstile Stainless Steel With Reader / ESD Gate Tester

We can provide a solution to ensure that every personnel who enter Special area (or the production floor) will be verified of their ID or ESD gear such as Wrist Strap and Footwear (or Heel Strap).

All personnel will go through a tester or an ESD Gate Tester. Once they passed the Limits, they will be permitted entry. Each testing (together with entry) will take approximately 2.5 seconds.

This is a GO-NO-GO system that will ensure minimum documentation and maintenance. The ESD Officer will just need to verify the system with a Verification Box every 3 months.

Features:

1. Designed reasonable and reliable movement, smooth running, long service life.
2. Wing to open very quickly, effectively prevent the tail, and improve the access speed.
3. After power-off, wing automatically open, forming a transparent channel.
4. Prompted with the direction of LED lights.
5. Adoption of a number of infrared sensors, to prevent illegal entry into the pedestrian access, to protect pedestrians safe and smooth through the channel.
6. Anti-recoil, a pedestrian entering the channel from the opposite direction, immediately report to the police.
7. Anti-tail, too many people to prevent a situation of non-permit.
8. With automatic reset function, namely to obtain permission lock after the set time There is no lock, wing gates automatic cancellation of this authority back to the initial state.
9. Waterproof, sunscreen, cold and high temperature.
10. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
11. A unified, standard external electrical interface, read and write device with a variety of freely Articulated, easy system integration.
12. Can be extended to automatic identification systems, achieve access control, attendance, fees and other functions.
13. Be integrated with other types channels with the use of product.

Technical parameters:

1. Box materials: Stainless steel
2. Internal structure: Steel frame structure
3. Box Dimensions: See product diagram
4. Wide channel: See product diagram
5. Arm wing materials: Stainless steel, acrylic, etc.
6. Core voltage: DC24V.
7. Control signal: relay signal input.
8. Lighting tips: green movement, the alarm curfew.
9. Power indicator light job: DC12V±5%.
10. Passing speed: Normally open mode: 50 passengers / min.

Normally closed mode: 30 passengers / min.

11. Gate opening, clearance time: 0.4 seconds
12. Temperature: -30 degrees~60 degrees
