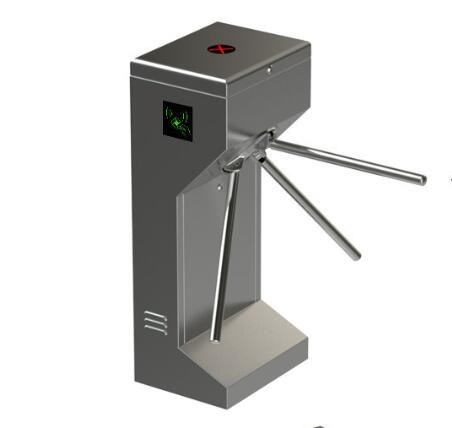

Office 2x20 LCD RS485 Bi Directional ESD Tripod Turnstile

Office 2x20 LCD RS485 Bi Directional ESD Tripod Turnstile


Large Image :  Office 2x20 LCD RS485 Bi Directional ESD Tripod Turnstile Get Best Price

Product Details:
Place of Origin: China
Certification: CE
Model Number: 420.330.1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD2000-3000/PC
Packaging Details: 1 Carton box to pack 1 pc of ESD Tripod turnstile, packing size : 460x 360x1050mm
Delivery Time: Ex-stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 pcs of ESD Tripod Turnstile each month
Detailed Product Description
Size: 1200*280*1000mm Working Environment: Indoor/Outdoor (with A Tent Over)
Pass Speed: 30-40 Persons/min Working Environments: Indoor /outdoor
Communication Interface: Standard RS485 Interface Application: Office,Vehicle Access Control
High Light:

Bi Directional ESD Tripod Turnstile


RS485 ESD Tripod Turnstile


2x20 LCD Pedestrian Barrier Gate

Indoor / Outdoor Pedestrian Barrier Gate , Office Bi Directional Turnstile


ESD Tripod Turnstile

We can provide a solution to ensure that every personnel who enter Special area (or the production floor) will be verified of their ID or ESD gear such as Wrist Strap and Footwear (or Heel Strap).


All personnel will go through a tester or an ESD Gate Tester. Once they passed the Limits, they will be permitted entry. Each testing (together with entry) will take approximately 2.5 seconds.


This is a GO-NO-GO system that will ensure minimum documentation and maintenance. The ESD Officer will just need to verify the system with a Verification Box every 3 months.


We have extensive installation experience and technical know-how. Our customers range from Motorola (Penang, Beijing, Tianjin), Micron( Xi'an),Solectron (Penang, Batam), Samsung (Suzhou), AMD, Spansion, Seagate, Knowles and many others.


DS-800 ESD Tester Specification

  • Able to test/verify from 500kOhm to 120MOhm
  • Accuracy/Tolerance ±10%
  • Simultaneous testing of Wrist strap, Left Foot and Right Foot
  • Testing Voltage 12V
  • Enclosure: Stainless steel casing
  • Testing Point ~ Vandal Resistance Steel Button
  • Water Isolated/Proof Footplate (Supplied together with the system)
  • Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
  • Other features of ESD tester:
    * 2x20 LCD Panel to facilitate Verification/Calibration
    * Digital Verification/Calibration Method
    * Upgradable for DataLogging and other control use
