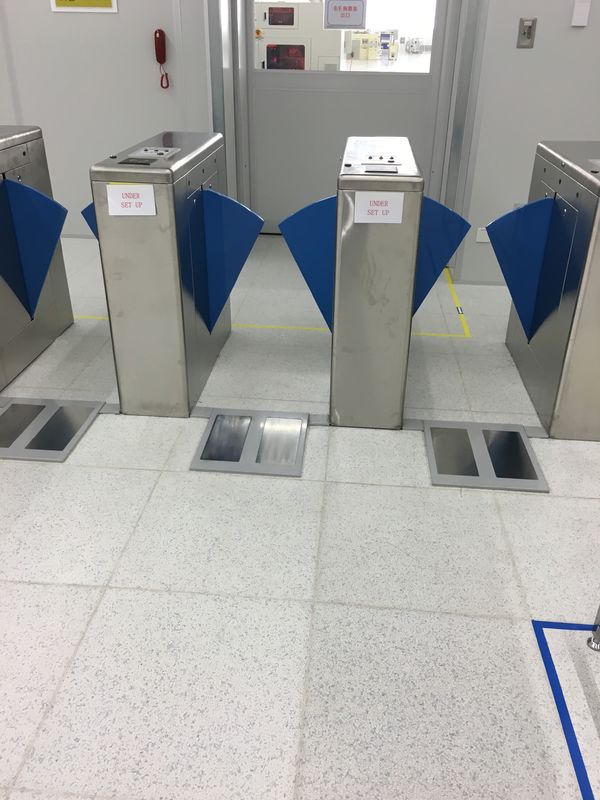

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader
Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader

Large Image :  Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACE DELIXIN
Certification: CE
Model Number: ACE1000.300.1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Firstly use carton box to pack, then use export wood box to pack
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Stainless Steel Size: L1000*W300*H1000MM
Tester Display: LCD Control Mode: Automatic
Power Comsumption: Static Status: 20W; Dynamic Status: 60W Temperature: -10 ºC - 60 ºC
Humidity: 5%~90% Noise: <50DB
Lane Width: 500-1000mm Usage Life: More Than 600 Million Times
High Light:

Stainless steel Pedestrian Barrier Gate

,

RFID Reader flap barrier gate

,

Electric Pedestrian flap barrier turnstile

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader



Flap gate.

Features:

  1. Designed reasonable and reliable movement, smooth running, long service life.
  2. Wing to open very quickly, effectively prevent the tail, and improve the access speed.
  3. After power-off, wing automatically open, forming a transparent channel.
  4. Prompted with the direction of LED lights.
  5. Adoption of a number of infrared sensors, to prevent illegal entry into the pedestrian access, to protect pedestrians safe and smooth through the channel.
  6. Anti-recoil, a pedestrian entering the channel from the opposite direction, immediately report to the police.
  7. Anti-tail, too many people to prevent a situation of non-permit.
  8. With automatic reset function, namely to obtain permission lock after the set time There is no lock, wing gates automatic cancellation of this authority back to the initial state.
  9. Waterproof, sunscreen, cold and high temperature.
  10. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
  11. A unified, standard external electrical interface, read and write device with a variety of freely Articulated, easy system integration.
  12. Can be extended to automatic identification systems, achieve access control, attendance, fees and other functions.
  13. Be integrated with other types channels with the use of product.

Technical parameters:

  1. Box materials: Stainless steel
  2. Internal structure: Steel frame structure
  3. Box Dimensions: See product diagram
  4. Wide channel: See product diagram
  5. Arm wing materials: Stainless steel, acrylic, etc.
  6. Core voltage: DC24V.
  7. Control signal: relay signal input.
  8. Lighting tips: green movement, the alarm curfew.
  9. Power indicator light job: DC12V±5%.
  10. Passing speed: Normally open mode: 50 passengers / min.

Normally closed mode: 30 passengers / min.

  1. Gate opening, clearance time: 0.4 seconds
  2. Temperature: -30 degrees~60 degrees





I. Flapgate

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 0





II. iDS-610 – ESD Wrist Strap and Shoe Tester








Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 1



  • Able to test/verify from 500kOhm to 1000MOhm
  • Accuracy/Tolerance ±10%
  • Simultaneous testing of Wrist strap, Left Foot and Right Foot
  • Testing Voltage 12V
  • Enclosure: Stainless steel casing
  • Testing Point ~ Vandal Resistance Steel Button
  • Water Isolated/Proof Footplate (Supplied together with the system)
  • Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
  • Other features of ESD tester:
    * 2x20 LCD Panel to facilitate Verification/Calibration
    * Digital Verification/Calibration Method
    * Upgradable for DataLogging and other control use



III. ID or IC reader





1. Specification:

ID CARD

Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS;Cover Foil = PVC
Color:White , black, grey, blue, yellow

Power requirements: 5-16VDC at 100mA, A linear regulator is recommended

Interface: Weigand

Reader range: 5 - 10 cm

Operation temperature: -30 C to +60 C

operationg humidity: 5%-95% relative humidity non-condensing

Audio/Visual Indication: Green & Red and Buzzer signal output

Response Time: Less than 0.2 seconds

cable length: 250mm

Weight: 60g

2. Wiring :

Red: Power 5-16V

Black: Power ground

Green: Wiegand output D0

White: Wiegand output D1

Brown: Green LED control

Blue: Buzzer control

Yellow: Hold



IV. Data Logging System D-Stat 700



D-Stat 700 Wrist Strap/Foot wear Datalogging System

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 2



5. DS-Reader



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 3



6. Ds_Scheduler



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 4



7. D-Stat 700



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 5



8. Main Screen



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 6



9. Employee

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 7



10. Bar Chart



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 8



11. Report



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 9



12, Attendance



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 10



13. Fail Report



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 11



14. DS-Fail Reporting



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 12



15. Edit Action /Remarks



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 13



16. Data-Logging Network Topology With iDS-600



Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 14
