Round Corner Half Height Turnstile Tripod Access System For Shopping Malls

Round Corner Half Height Turnstile Tripod Access System For Shopping Malls

Round Corner Half Height Turnstile Tripod Access System For Shopping Malls
Round Corner Half Height Turnstile Tripod Access System For Shopping Malls

Large Image :  Round Corner Half Height Turnstile Tripod Access System For Shopping Malls Get Best Price

Product Details:
Place of Origin: China
Brand Name: DLX
Certification: CE
Model Number: DLX-101 DLX-111 DLX-121
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD(1-1000)
Packaging Details: Carton box or Wooden box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300Sets/Month
Detailed Product Description
Power Supply: AC220V±20%V, 50Hz Size: L1200*W280*H990mm
Brake Rod Length: 500mm Traffic Speed: 30people/min
Color: Stainless Steel Wire Drawing Or Spray, Color Optional Work Environment: Indoor And Outdoor
High Light:

tripod barrier gate

,

pedestrian turnstile gate

,

Round Corner Half Height Turnstile

Round Corner Half Height Turnstile Tripod Access System For Shopping Malls

Product Classification

Fully automatic model: DLX-101
Semi-automatic model: DLX-111
Manual model: DLX-121

Semi-automatic three roll turnstile
Standard functions:

◆ automatic reset function: through the spring damper and balance mechanism to ensure that the brake is always in a safe and stable state;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ a variety of access mode function: you can set the gate two-way card or one-way free access two kinds of access mode;
◆ pass request memory function: after swiped the card several times, the gate will remember the number of passers and close the gate after all the pedestrians have passed.
◆ power off the lever function: after the power off the brake, the lever automatically falls to facilitate personnel evacuation;
◆ anti-collision function: when the brake lever is locked, it cannot be pushed by external force;
Various control functions: external button, remote control, bar code meter, IC or ID and other reading and writing devices;
Anti-trailing function: lock automatically when the lever turns 120 degrees after each pass.
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic lock function: if the card is not passed within the specified time, the brake machine shall re-lock to cancel the pass, the time is 1-60 seconds.


Extended function

◆ traffic limit function: the number of traffic can be limited by the software to meet the special situation of personnel management;
◆ counting function: can increase the counter statistics the number of people in and out;
◆ anti-reverse passage function: in the process of passage, the brake lever can only move forward after it has been rotated at a certain Angle, to prevent more than one jam;
◆ illegal intrusion alarm: when the pedestrian does not swipe the card to force through, the brake will alarm to prompt the pedestrian to swipe the card to pass;
◆ hydraulic buffer function: in order to reduce the running metal impact sound, can increase the hydraulic buffer;


Product Parameter

◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 30 people/min (IC card);
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional;


SUIT OCCATIONS

◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.


=================================================================================

Automatic three roll turnstile

Standard functions

◆ ultra-quiet design: the machine adopts the third generation of quiet design, running smoothly without impact noise;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ automatic access function: after card reading, the brake lever will automatically operate at a certain Angle to unlock, and the brake will automatically drive people through;
◆ a variety of operating mode functions: by setting the switch can be set to the brake normally open, normally closed two operating modes;
◆ pass memory function: after the pedestrian swiped the card for several times, the gate will remember the number of passers and close the gate after all passers have passed.
◆ automatic power on lever function: the brake automatically rotates after power on to make the lever automatic power on without human operation;
◆ power off the lever function: after the power off the brake, the lever automatically falls down to facilitate personnel evacuation and meet the requirements of fire control;
◆ anti-collision function: when the pedestrian does not swipe the card to push the brake lever, the brake lock;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the brake shall return to the original position and cancel the pass, the time is 1-60 seconds.


Extended function

◆ counting function: can increase the counter statistics the number of people in and out;
◆ anti-reverse passage function: in the process of passage, the brake lever can only move forward after it has been rotated at a certain Angle, to prevent more than one jam;
◆ illegal break in alarm function: when the pedestrian does not swipe the card to force through, the brake will alarm to prompt the pedestrian to swipe the card to pass.


Product Parameter

◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 30 people/min (IC card);
◆ motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.


==============================================

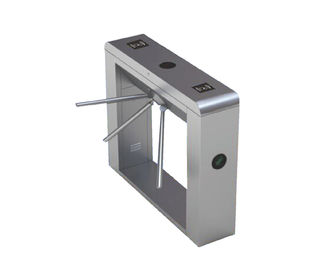

Product Presentation
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,
2. Dimensions: length 1200× width 280× height 990 (mm)
3. Weight:50kg.
4. Brake lever length: 500(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)


==================================================================



Round Corner Half Height Turnstile Tripod Access System For Shopping Malls 0
