|Material:||Stainless Steel||Application:||ESD Inspection And Access Control System|
|Control Mode:||Automatic||Voltage:||AC220V ,50HZ|
|Power Comsumption:||Static Status: 20W; Dynamic Status: 60W||Humidity:||5%~90%|
|Speed:||≥20 People/min||Usage Life:||More Than 600 Million Times|
pedestrian turnstile gate,
tripod Access Control Turnstiles,
Tripod Security ESD Turnstile

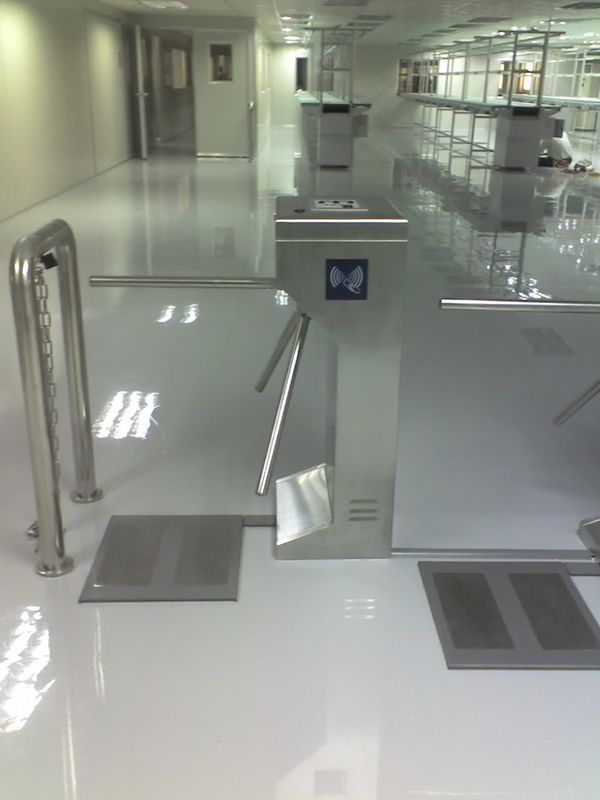

Security ESD Turnstile Stainless Steel , Electronic Access Control Turnstiles
Datalogger is connected to a PC via RS-232 or TCPIP
1>. Tester is able to test left and right footwear
2>. Tester is ready to test for 5 seconds after swiping card
3>. Software to plot graph or report as specified.
4>. Software is customized according to users requirement.
5>. System to pull operators database from server.
6>. E-mail notification if operator fail test.
7>. Graph and report can be viewed by authorized workstation.
1.1 iDS-610 – ESD Wrist Strap and Shoe Tester
1.2. iDS-700 – EDS DataLogging Software
2. Data Logging System D-Stat 700
D-Stat 700 Wrist Strap/Foot wear Datalogging System
3. Wrist strap and Footwear Station
4. D-Stat 700 Wrist Strap/Footwear
D-Stat 700 datalogging system is a self-contained and user
friendly system that provides the ultimate means to automate
the test data of the wrist strap and/or footwear.
The basic system consists of :
- Wrist strap and footwear tester
- D-Stat 700 Datalogging
- Ds-Fail Reporting
- Dual Conductor Footplate
- Barcode Reader/Smart Card Reader
7. D-Stat 700
8. Main Screen
10. Bar Chart
13. Fail Report
14. DS-Fail Reporting
15. Edit Action /Remarks
16. Data-Logging Network Topology With iDS-600
