SMT SMD Carrier Tape Carrier Tapa For 8mm 12mm Cover Tape Environmental

SMT SMD Carrier Tape Carrier Tapa For 8mm 12mm Cover Tape Environmental

small.img.alt small.img.alt small.img.alt

Large Image :  SMT SMD Carrier Tape Carrier Tapa For 8mm 12mm Cover Tape Environmental Get Best Price

Product Details:
Place of Origin: CHINA
Certification: ROHS,SGS
Model Number: 8mm-88mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD(0.1-6)/meter
Packaging Details: carton box packing
Delivery Time: 5-8days
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 200000meters per month
Detailed Product Description
Color: Black Or Clear ESD Value: 10E5 Or NO
Size: Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm Material: PS/PC
Cover Tape: Can Provide Reel: Can Provide
High Light:

10E5 SMD Carrier Tape


8mm SMT Carrier Tape


1000M/R SMT Carrier Tape

SMT SMD Carrier Tape Carrier Tapa For 8mm 12mm Cover Tape Environmental



Products Information

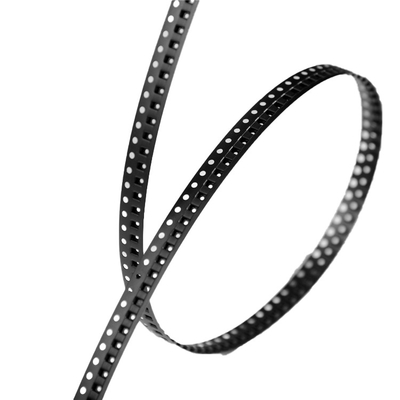

Carrier tape
8mm carrier tape
punched carrier tape
SMD SMT encapsulation
Size can be customized

Carrier Tape definition:

The carrier tape refers to a tape product in the field of electronic packaging, which has a specific thickness, and equidistantly distributes holes (also called pockets) for holding electronic components in the longitudinal direction thereof and is used for indexing. Positioning holes for positioning.


Use of carrier tape

Carrier tape is mainly used in the electronic component mounting industry. It is used with a cover tape (upper tape) to carry electrical components such as resistors, capacitors, transistors, diodes, etc. in a carrier tape, and to form a closed package by sealing the cover tape over the carrier tape for Protect electronic components from contamination and damage during transportation. When the electronic components are placed, the cover tape is peeled off, and the automatic placement device sequentially takes out the components contained in the pocket through the precise positioning of the tape index holes, and mounts them on the integrated circuit board (PCB board).


Carrier classification

According to the width: According to the size of the electronic components carried by the package, the carrier tape is also divided into different widths. Common widths are 8mm, 12mm, 16mm, 24mm, 32mm, 44m, 56mm, etc.

With the development of the electronic market, the chip has a smaller and smaller trend, and the carrier tape has also been developed in a precise direction. Currently, there is a carrier tape supply of 4 mm width.


Carrier material:

The material of the carrier tape mainly includes two types: plastic (polymer) and paper. The embossed carrier tape is mainly composed of plastic materials. Currently, the mainstream in the market is PC (polycarbonate) carrier tape, PS (polystyrene) and ABS (acrylonitrile-butadiene-styrene copolymer resin) carrier tape. There are also a small amount of carrier tape prepared from PET, APET and other materials. The stamping carrier tape is mainly prepared from paper materials or PE composite materials.


Product Characteristics

PC materials are characterized by high mechanical strength, good transparency, good dimensional stability, high glass transition temperature and good heat resistance. The mechanical strength of the PS material is lower than that of the PC material, so sometimes the ABS material is made into a three-layer composite sheet to increase the tensile strength of the carrier tape. The mechanical strength of the PET material is close to that of the PC, but due to the crystalline material, the dimensional stability is poor.

SMT SMD Carrier Tape Carrier Tapa For 8mm 12mm Cover Tape Environmental 0
