Stainless Steel ESD Turnstile Economic Flap Gate With Tester ID Reader Components



I. Flap gate.

Features:

1. Designed reasonable and reliable movement, smooth running, long service life.
2. Wing to open very quickly, effectively prevent the tail, and improve the access speed.
3. After power-off, wing automatically open, forming a transparent channel.
4. Prompted with the direction of LED lights.
5. Adoption of a number of infrared sensors, to prevent illegal entry into the pedestrian access, to protect pedestrians safe and smooth through the channel.
6. Anti-recoil, a pedestrian entering the channel from the opposite direction, immediately report to the police.
7. Anti-tail, too many people to prevent a situation of non-permit.
8. With automatic reset function, namely to obtain permission lock after the set time There is no lock, wing gates automatic cancellation of this authority back to the initial state.
9. Waterproof, sunscreen, cold and high temperature.
10. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
11. A unified, standard external electrical interface, read and write device with a variety of freely Articulated, easy system integration.
12. Can be extended to automatic identification systems, achieve access control, attendance, fees and other functions.
13. Be integrated with other types channels with the use of product.





Technical parameters:

1. Box materials: Stainless steel
2. Internal structure: Steel frame structure

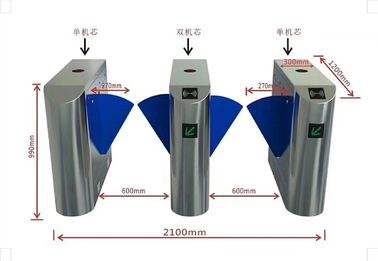

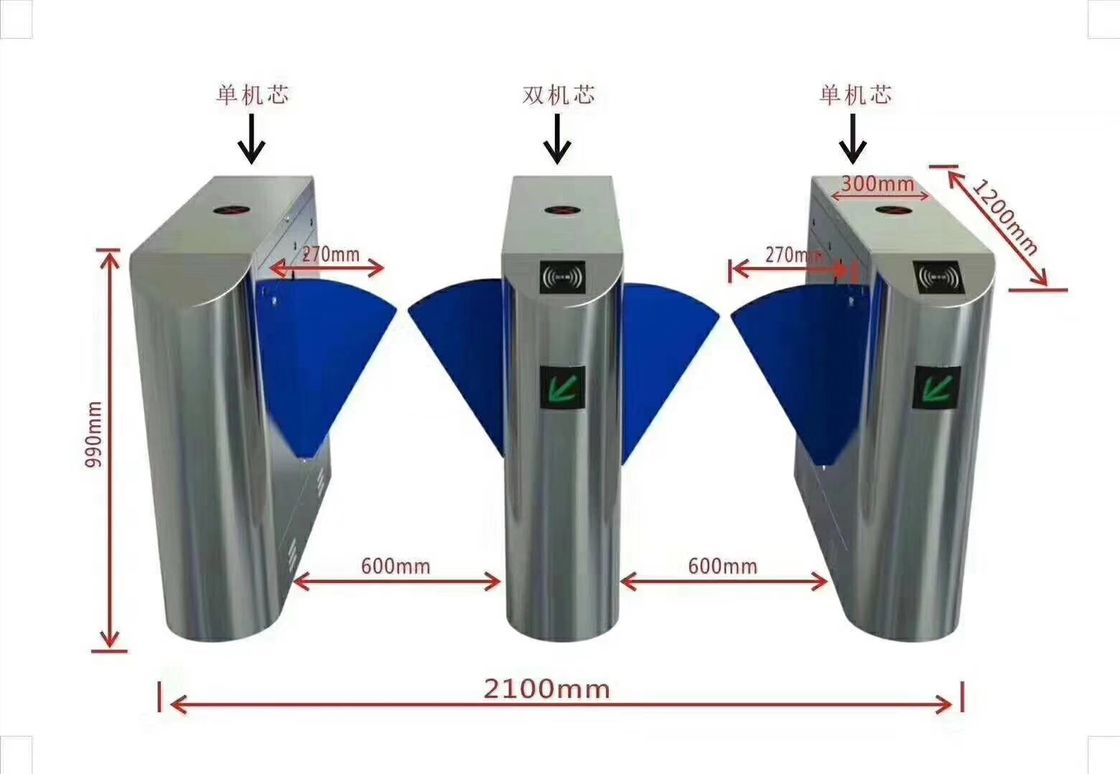

3. Box Dimensions: See product diagram
4. Wide channel: See product diagram
5. Arm wing materials: Stainless steel, acrylic, etc.
6. Core voltage: DC24V.
7. Control signal: relay signal input.
8. Lighting tips: green movement, the alarm curfew.
9. Power indicator light job: DC12V±5%.
10. Passing speed: Normally open mode: 50 passengers / min.

Normally closed mode: 30 passengers / min.

11. Gate opening, clearance time: 0.4 seconds
12. Temperature: -30 degrees~60 degrees



II. iDS-610 – ESD Wrist Strap and Shoe Tester







• Able to test/verify from 500kOhm to 1000MOhm
• Accuracy/Tolerance ±10%
• Simultaneous testing of Wrist strap, Left Foot and Right Foot
• Testing Voltage 12V
• Enclosure: Stainless steel casing
• Testing Point ~ Vandal Resistance Steel Button
• Water Isolated/Proof Footplate (Supplied together with the system)

• Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
• Other features of ESD tester:
  * 2x20 LCD Panel to facilitate Verification/Calibration
  * Digital Verification/Calibration Method
  * Upgradable for DataLogging and other control use



III. ID or IC reader



1. Specification:

ID CARD

Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS；Cover Foil = PVC
Color:White , black, grey, blue, yellow

Power requirements: 5-16VDC at 100mA, A linear regulator is recommended

Interface: Weigand

Reader range: 5 - 10 cm

Operation temperature: -30 C to +60 C

operationg humidity: 5%-95% relative humidity non-condensing

Audio/Visual Indication: Green & Red and Buzzer signal output

Response Time: Less than 0.2 seconds

cable length: 250mm

Weight: 60g

2. Wiring :

Red: Power 5-16V

Black: Power ground

Green: Wiegand output D0

White: Wiegand output D1

Brown: Green LED control

Blue: Buzzer control

Yellow: Hold



LED/Buzzer function description

LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.

Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released

Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)





IV. Data Logging System D-Stat 700



D-Stat 700 Wrist Strap/Foot wear Datalogging System



Advantages

Capture and record real time data-Name, ID No,

Pass or Fail, Time,date,ETC.

1>. Database is easy filtering of data-

Shift,Department,Date,Name,Station,ETC.

2>. Convincing data to show auditor.

3>. Database can be customize.

4>. Various form of reports – Graph and others.

5>. Automated e-mail feed for network system.

6>. Able to corporate with Gatebarrier tester.



5. DS-Reader





6. Ds_Scheduler





7. D-Stat 700





8. Main Screen





9. Employee



10. Bar Chart





11. Report





12, Attendance





13. Fail Report





14. DS-Fail Reporting





15. Edit Action /Remarks





16. Data-Logging Network Topology With iDS-600
